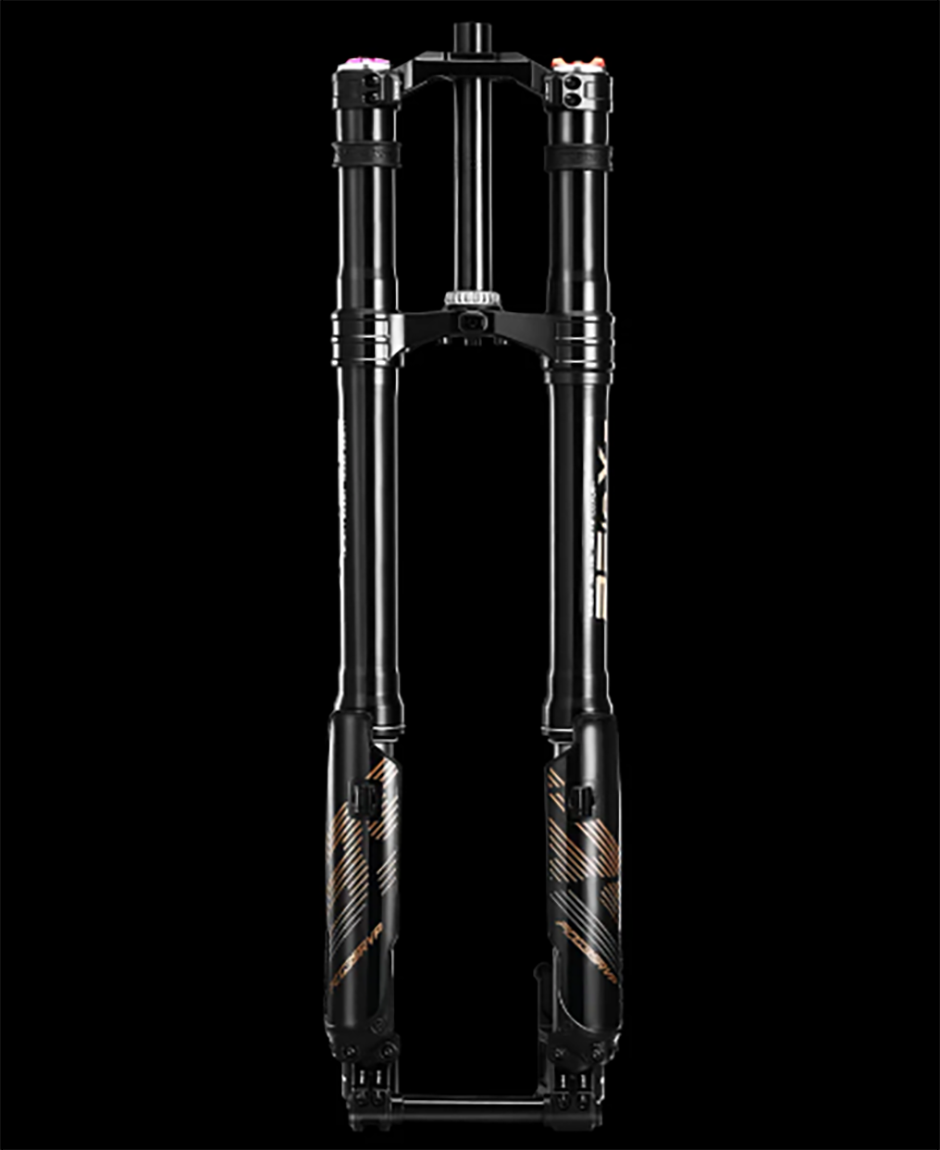

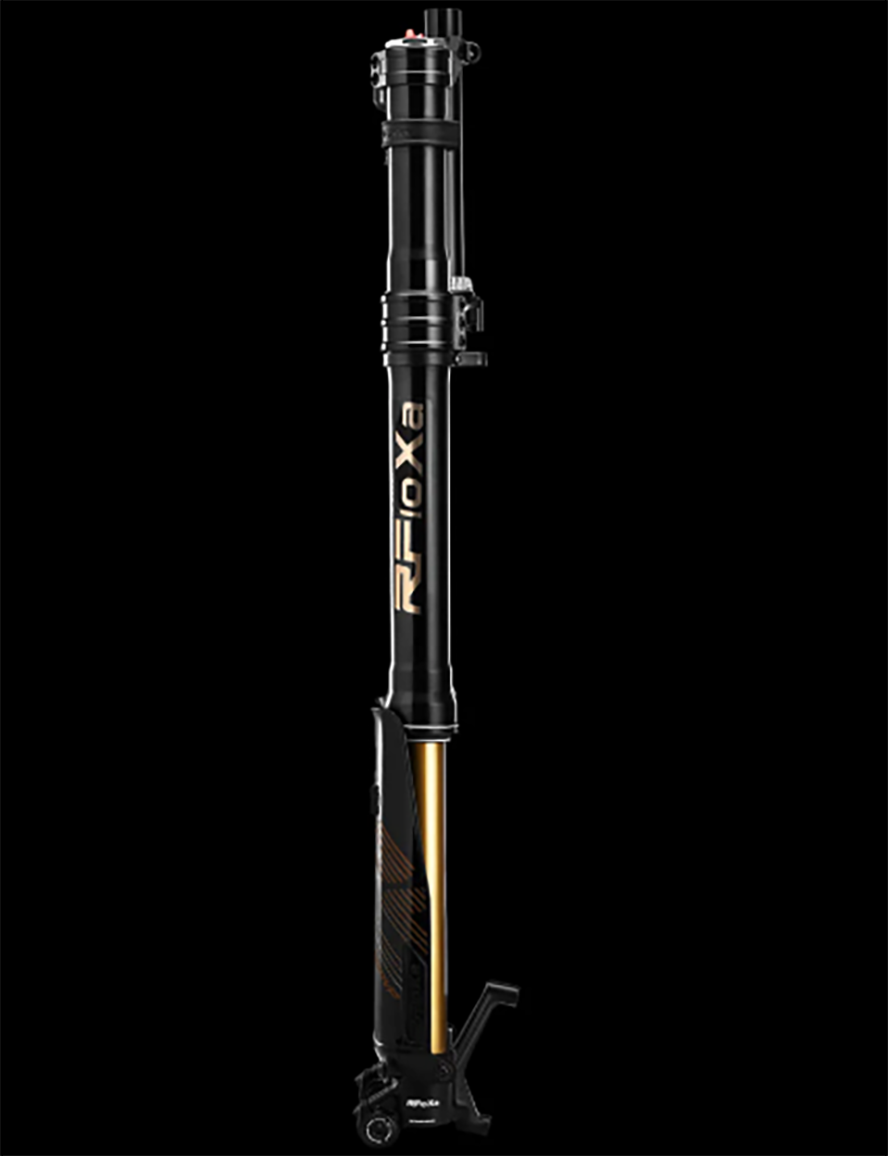

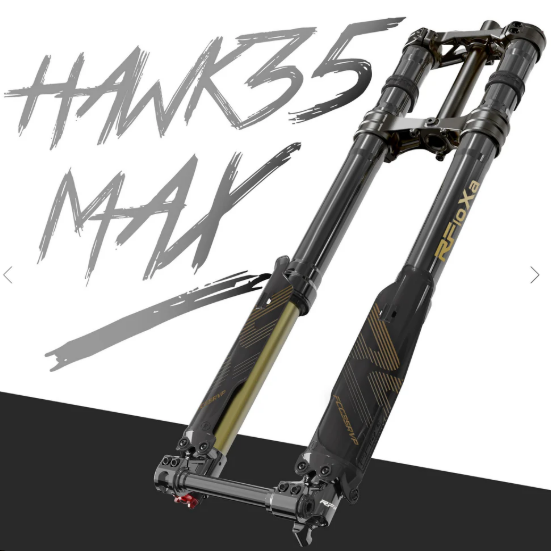

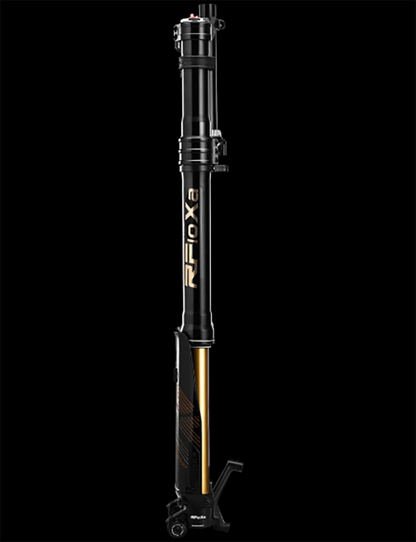

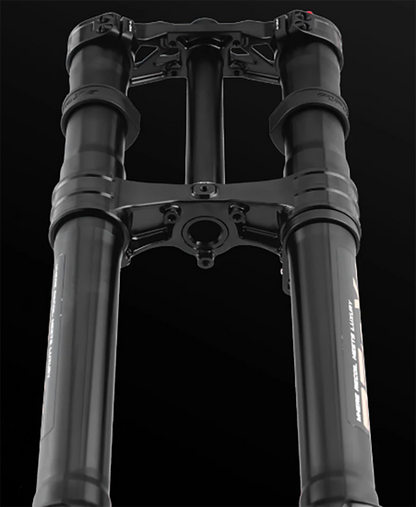

RFloXa Hawk 35 Max e-Moto Fork, SR/3.0 Direct Fit, 228mm Travel, 99.5mm PM

RFloxa Hawk 35 Max Coil Fork

Designed for E Ride Pro SS 3.0 & SR

The RFloxa Hawk 35 Max Coil Fork is a heavy-duty, performance-driven front suspension built specifically to handle the added weight, torque, and braking demands of modern electric dirt bikes. Engineered around the E Ride Pro SS 3.0 and SR platforms, this fork delivers confidence-inspiring control whether you’re charging hard off-road, hammering downhill lines, or pushing limits on high-speed terrain.

Featuring an inverted oil-spring damping system, the Hawk 35 Max provides exceptional small-bump sensitivity while maintaining stability under aggressive riding and heavy braking. With up to 228mm of travel, a robust 37mm tube diameter, and premium forged and CNC-machined aluminum construction, this fork is built to take abuse without sacrificing precision.

Dial in your ride with multi-stage high-speed compression, low-speed compression, rebound, and spring preload adjustments, allowing riders to fine-tune performance for terrain, riding style, and weight. The oversized 99.5mm post-mount caliper spacing supports larger brake setups for superior stopping power—perfect for high-performance e-moto applications.

Available spring options ensure proper setup for a wide range of riders:

• 45lb spring: ideal for riders 150–195 lbs

• 55lb spring: ideal for riders 200 lbs and up (SOLD OUT)

Whether you’re upgrading your stock suspension or building a no-compromise e-moto, the RFloxa Hawk 35 Max delivers durability, adjustability, and race-ready performance.

Key Specifications & Features

• Fitment: E Ride Pro SS 3.0 / SR

• Travel: 203–228mm (228mm version compatible with 19” / 21” wheels)

• Center Distance: 750–800mm

• Tube Diameter: 37mm

• Damping System: Inverted Oil-Spring

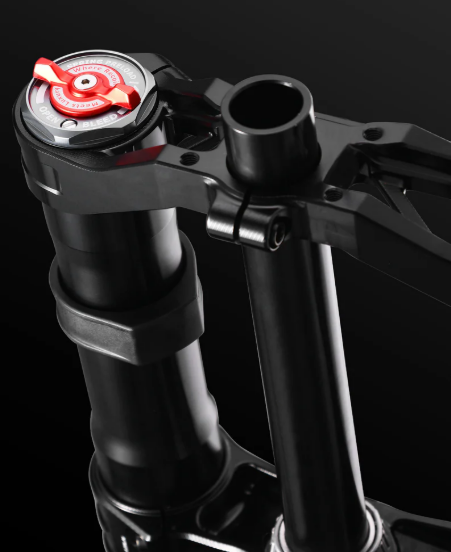

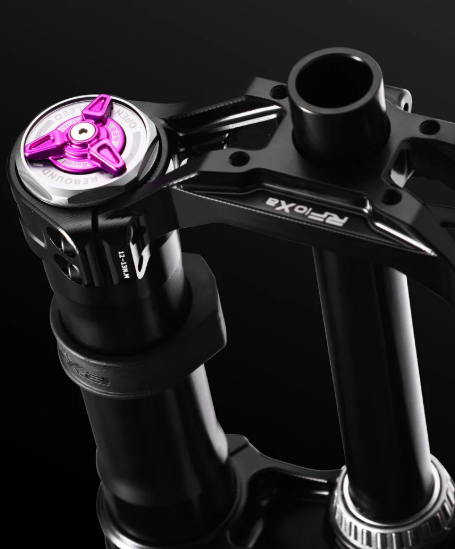

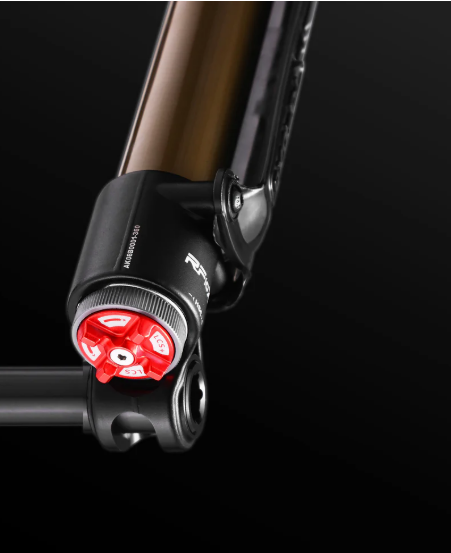

• Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

• Caliper Mount Spacing: 99.5mm

• Brake Rotor Size: 220mm (Upgradeable)

• Materials:

  • AL6061-T6 Forged Aluminum Bottom Brackets

  • AL7075-T6 Aluminum Fork Tubes

• Spring Wire: 55CRSI

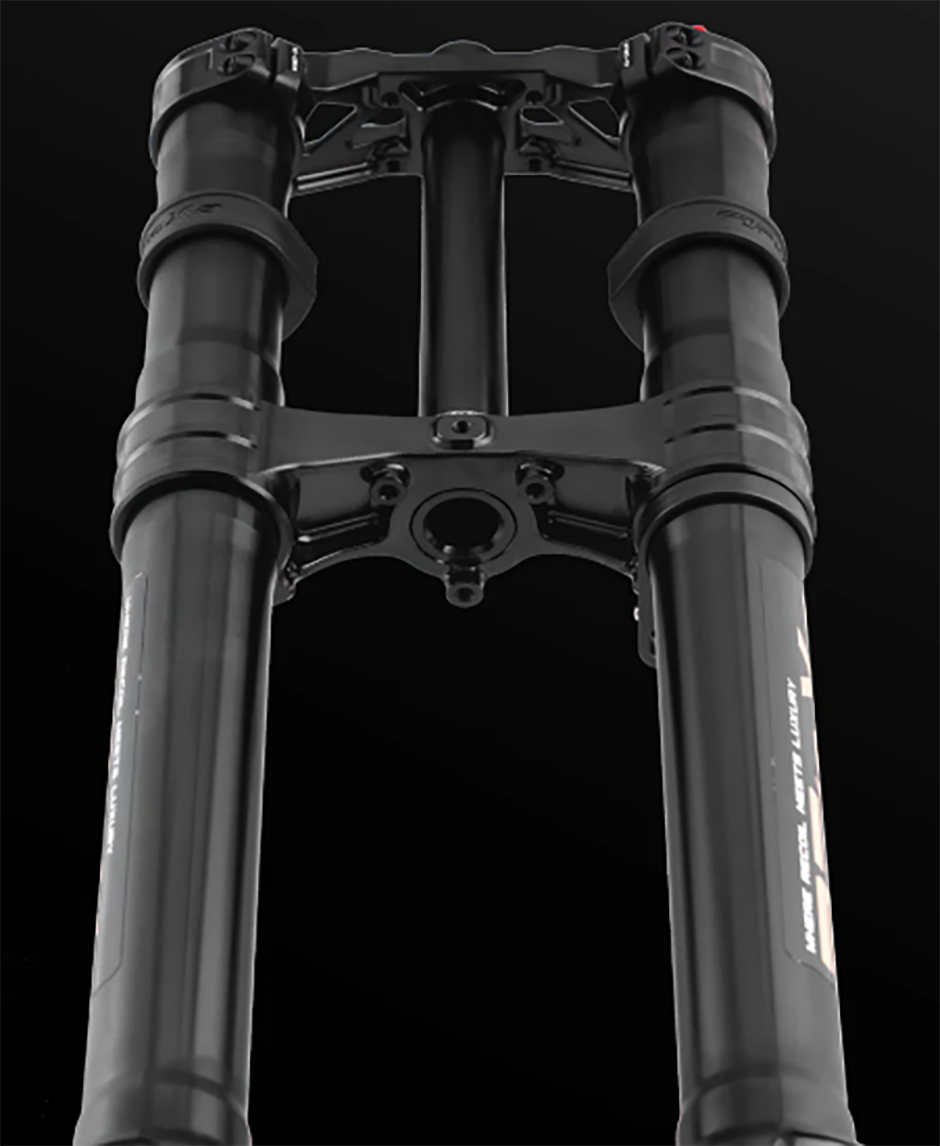

• MAX Triple Clamp: CNC Precision Machined

• Application: Electric Dirt Bikes, Downhill Bikes

Compatibility Note

This fork can be adapted for use on other electric bikes such as the Surron Light Bee and E Ride Pro SS 2.0, with modifications. Due to the larger 99.5mm caliper post mount (compared to the traditional 74mm e-moto standard), these applications require using the E Ride Pro 3.0 / SR front wheel and brake system.
