Zerode Shadow (pre-order), Frame + Drivetrain, C1.9 Pinion SmartShift

The Shadow is our hard-charging Enduro rig. Racebred, focused on speed.

Long travel, progressive geometry and a low centre of mass keep the Shadow planted and stable in the roughest stages. A continued focus on reduced unsprung mass, paired with a refined kinematic package, provides grip on a new level.

Enduro race, bike park or a day out with your crew, the Shadow will be your best mate.

It's fast, it's silent, it's a good time.

• 170mm/160mm travel
• Full 29 or MX configurations via interchangeable shock mounting
• Size-specific stays
• Boost rear spacing and new axle design
• Internal storage & improved bottle capacity

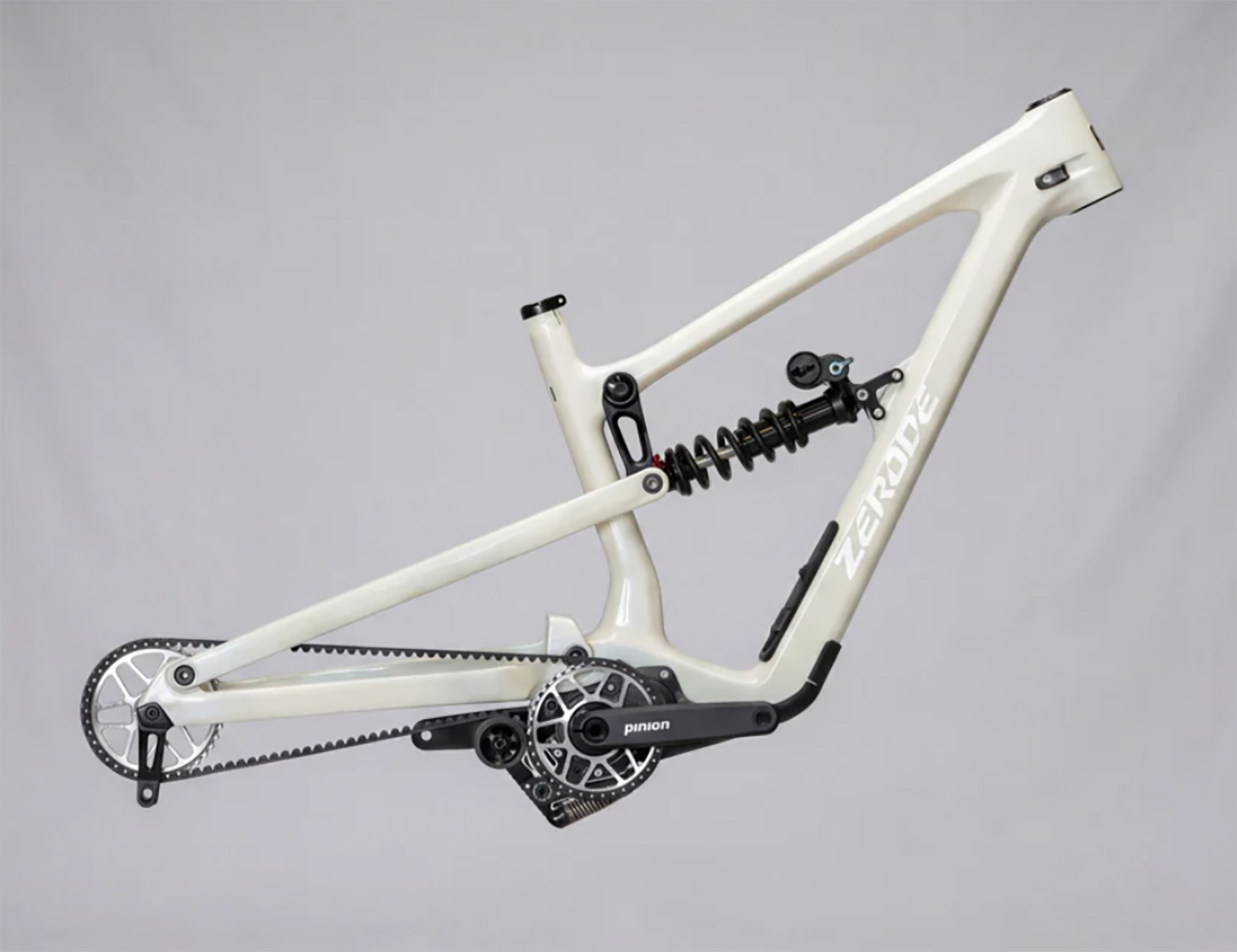

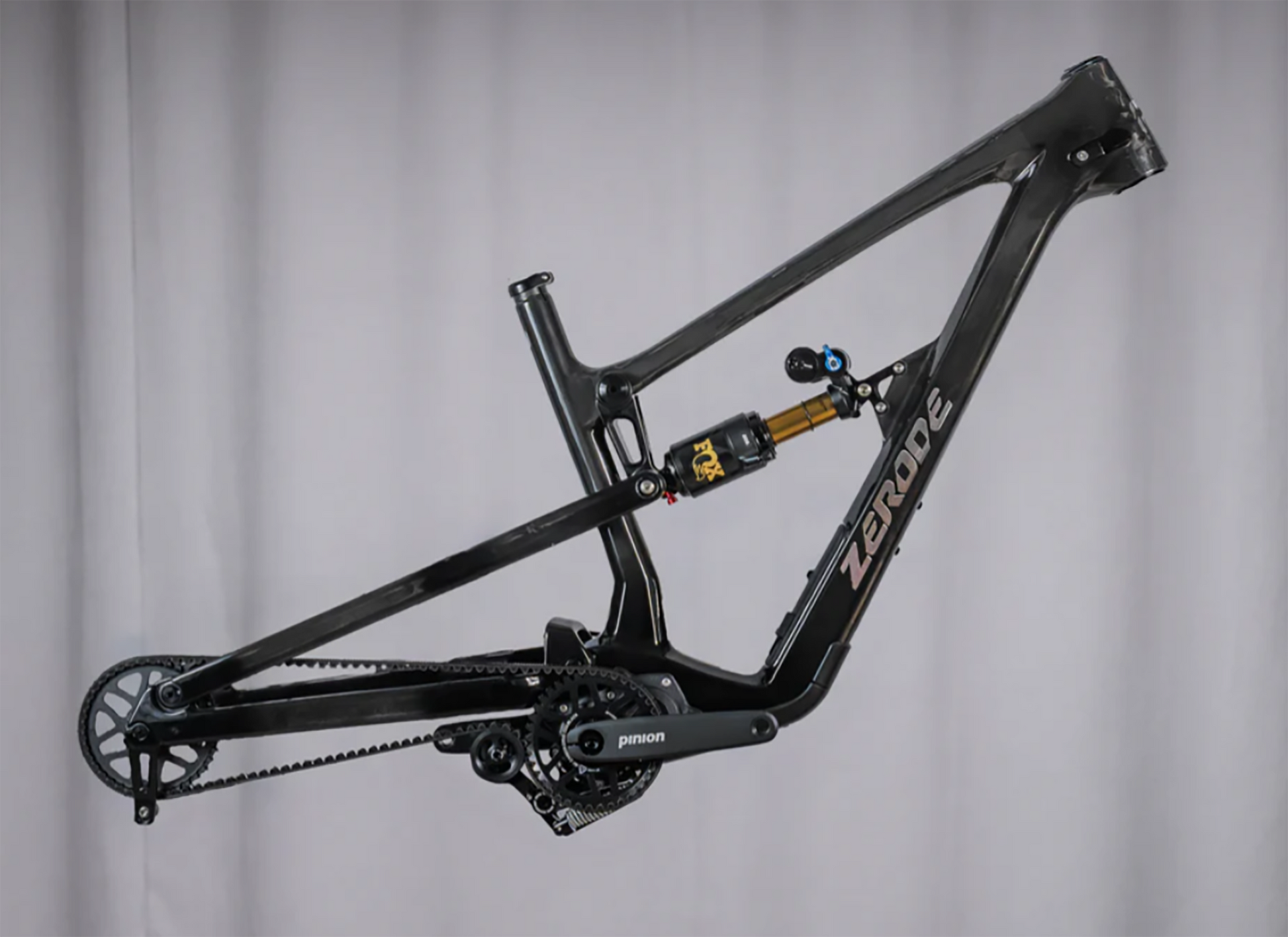

Frame Specs:

• Frame: Carbon Fiber. 160 mm travel. Internal cable routing and internal storage. Interchangeable front shock mount for both full 29 and MX
• Rear shock: FOX DHX2 Factory
• Gearbox and shifter: Pinion C1.9i - 9 speed, Smart.Shift, Pinion TE-1 electronic trigger shifter
• Belt: Gates CDX 122t (short stay) or 125t (long stay).
• Sprockets: Gates CDX 39t
• Belt tensioner: Pinion BT-1
• Cranks: Pinion 165 mm
• Frame warranty: Lifetime (first owner)

Geometry:

SMALL

Under construction

MEDIUM

• Reach: 455 mm
• Stack: 632 mm
• ST Angle: 78°
• HT Angle: 63,5°
• ST length: 420 mm
• HT Length: 110 mm
• Top tube effective: 589 mm
• Front-center: 805 mm
• CS Length: 435 mm
• BB Height: 345 mm
• BB Drop: Full 29'er: 30 mm. Mullet: 19,6 mm
• Wheelbase: 1238 mm
• Standover: 700 mm

LARGE

• Reach: 485 mm
• Stack: 641 mm
• ST Angle: 78°
• HT Angle: 63,5°
• ST length: 450 mm
• HT Length: 120 mm
• Top tube effective: 621 mm
• Front-center: 839 mm
• CS Length: 450 mm
• BB Height: 345 mm
• BB Drop: Full 29'er: 30 mm. Mullet: 19,6 mm
• Wheelbase: 1288 mm
• Standover: 702 mm

EXTRA LARGE

Under construction

Current lead times:

Black M/ L: 2nd half of June

Amazonian M/ L: 2nd half of June - Images coming soon!

Cream white M/ L: 2nd half of June

All colors XL: Late 2026

All colors Small: End of 2026
