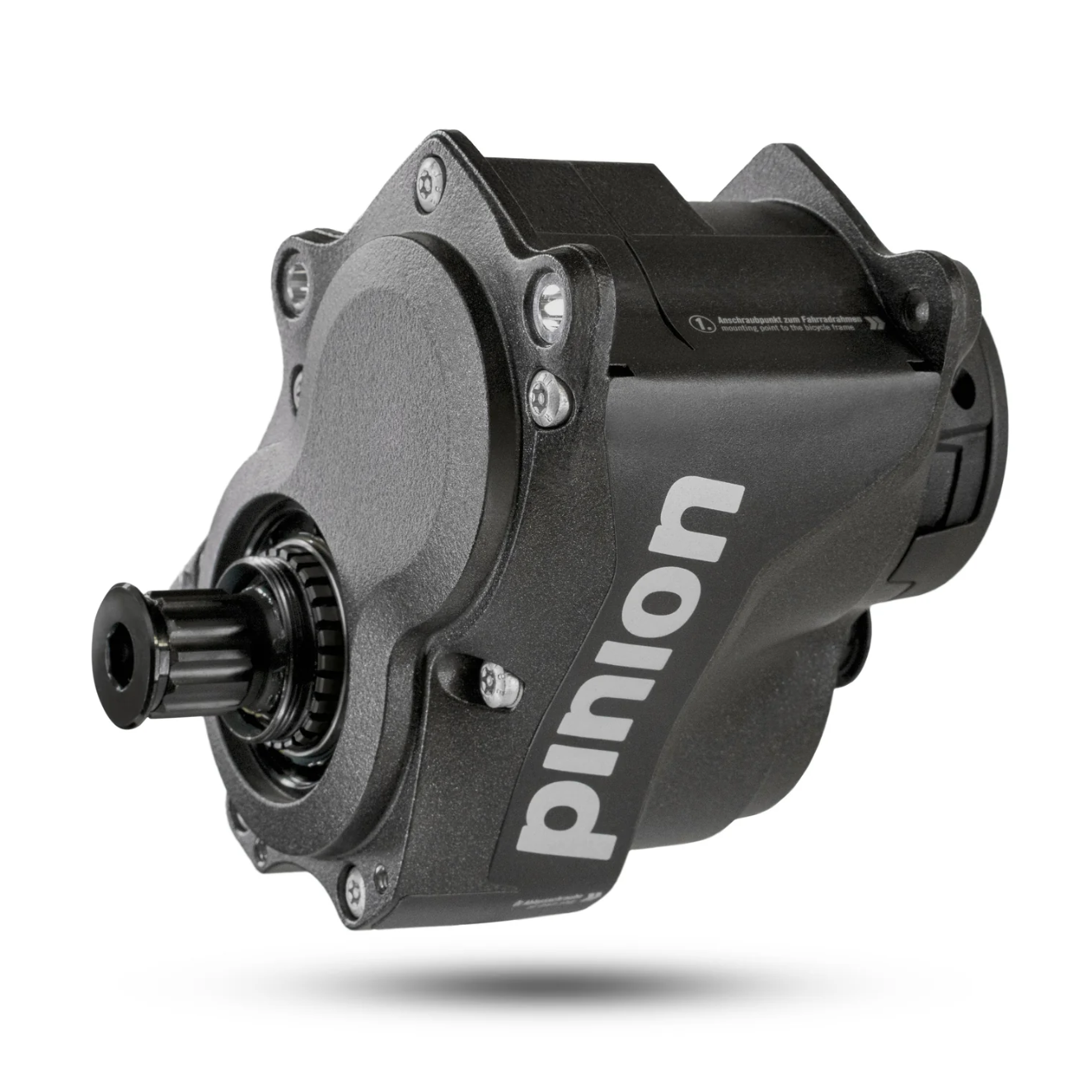

Pinion C-Line Gearbox Assembly (C1.6, C1.9 & C1.12)

Upgrade or replace your drivetrain with a genuine Pinion C-Line Gearbox Assembly. Designed for frames built around the Pinion gearbox platform, the C-Line delivers exceptional durability, low maintenance, and smooth, precise shifting in a fully sealed gearbox.

Unlike traditional derailleur systems, the Pinion gearbox places the drivetrain's weight centrally within the frame, improving handling while protecting the transmission from rocks, mud, and trail impacts. The sealed design also minimizes maintenance and keeps shifting performance consistent in all riding conditions.

This listing is for the gearbox assembly only. It is compatible with any bicycle frame designed to accept the corresponding Pinion C-Line gearbox, including the Zerode G3, Zerode Katipo, and Zerode Shadow, along with many other Pinion-equipped bikes.

Available Options

C1.6

• Pinion's lightest C-Line gearbox
• Ideal for urban e-bikes, cargo bikes, commercial fleets, and rental bikes
• Lightweight, efficient, and built for everyday reliability

C1.9

• 9-speed gearbox with optimized efficiency
• 3 × 3 gear architecture
• Larger gear steps for fast, efficient shifting
• Popular for enduro, trail, and e-MTB applications

C1.12

• 12-speed gearbox with a massive 600% gear range
• 4 × 3 gear architecture
• Closely spaced gear ratios for smooth cadence changes
• Excellent choice for trail riding, touring, adventure, and everyday use

Features

• Genuine Pinion C-Line gearbox
• Fully sealed, low-maintenance design
• Smooth and precise shifting
• Centralized drivetrain weight for improved bike handling
• Protected internal gearing for maximum durability
• Compatible with Pinion-specific bicycle frames
• Direct replacement for existing Pinion-equipped bikes

Fitment

Compatible with bicycle frames designed for the Pinion C-Line platform, including:

• Zerode G3
• Zerode Katipo
• Zerode Shadow
• Other compatible Pinion-equipped bicycle frames

What's Included

• Pinion C-Line gearbox assembly only

Sold Separately

• Pinion DS2 Smart.Shift electronic shifter
• Crank arms
• Front sprocket (belt or chain version)
• Rear cog
• Battery and charger
• Additional Smart.Shift components

Note: This listing includes only the Pinion gearbox assembly. A complete drivetrain requires additional components, including a compatible shifter, cranks, front sprocket, and rear cog. Please verify compatibility with your frame and drivetrain configuration before ordering.

Number of gears		12	9	6
Total range		600 %	568 %	295 %
Step size		17.7 %	24.3 %	24.3 %
Easiest gear		1.82	1.82	0.95
Fastest Gear		0.30	0.32	0.32
Gearbox weight		ca. 2100 g	ca. 2000 g	ca. 1800 g
