Lewis EP8+ Axial Cylinder 8 Pistons Hydraulic Disc Brake

Lewis EP8+ Axial Cylinder 8 Pistons Hydraulic Disc Brake

Regular price $564.50
Regular price $584.50 Sale price $564.50
Sale Sold out
Shipping calculated at checkout.

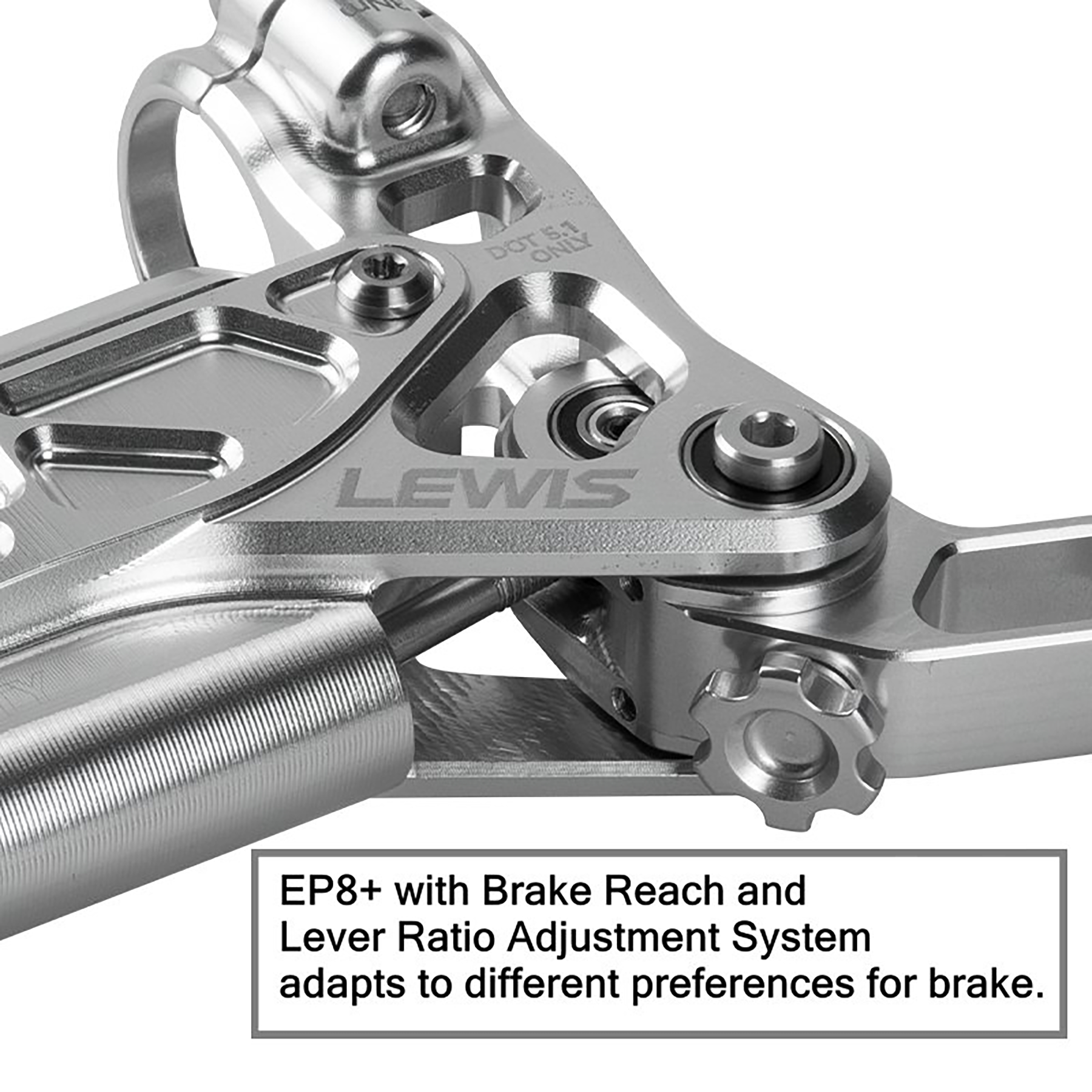

EP8+ with Lever Reach and Leverage Ratio Adjustment System adapts to different preferences for brake.

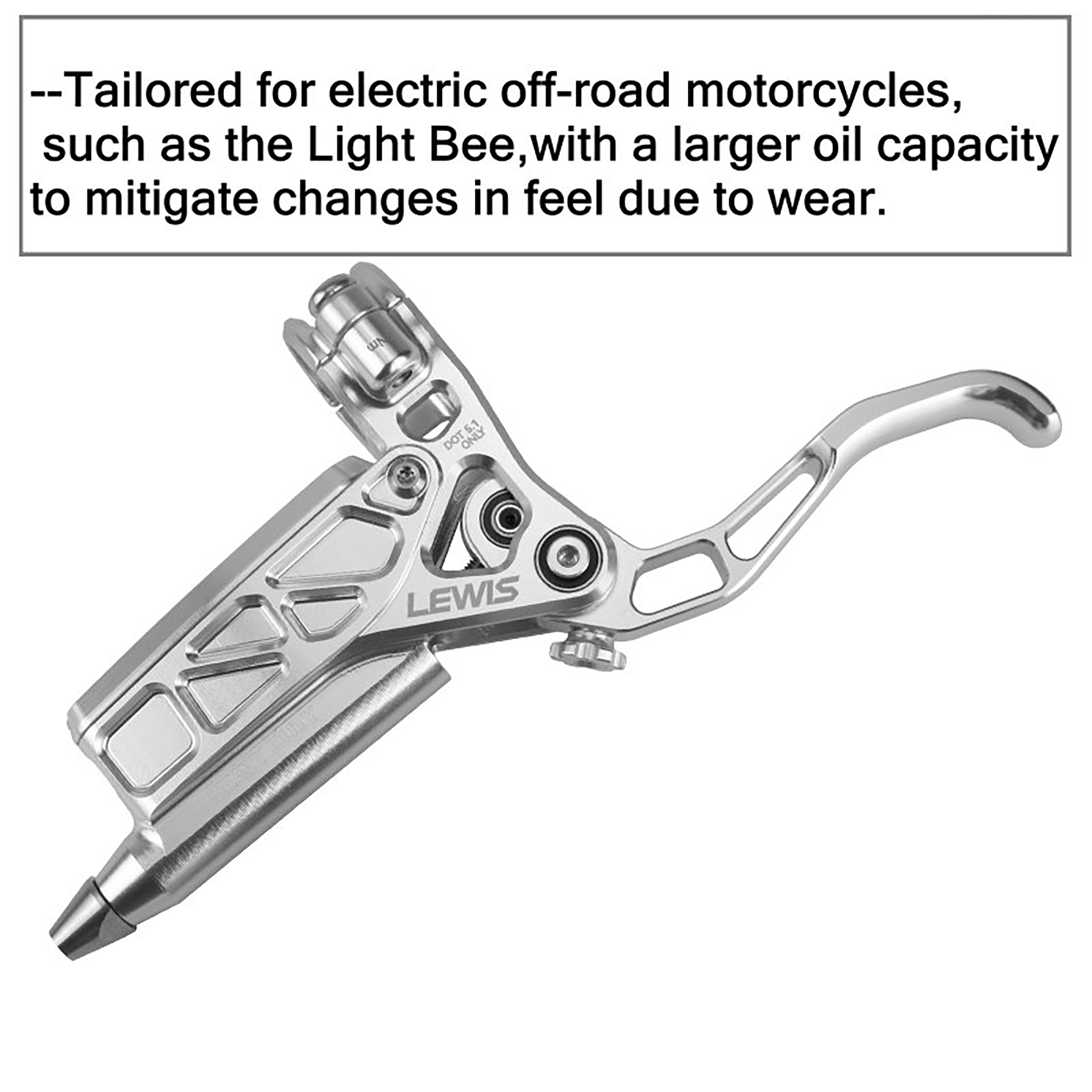

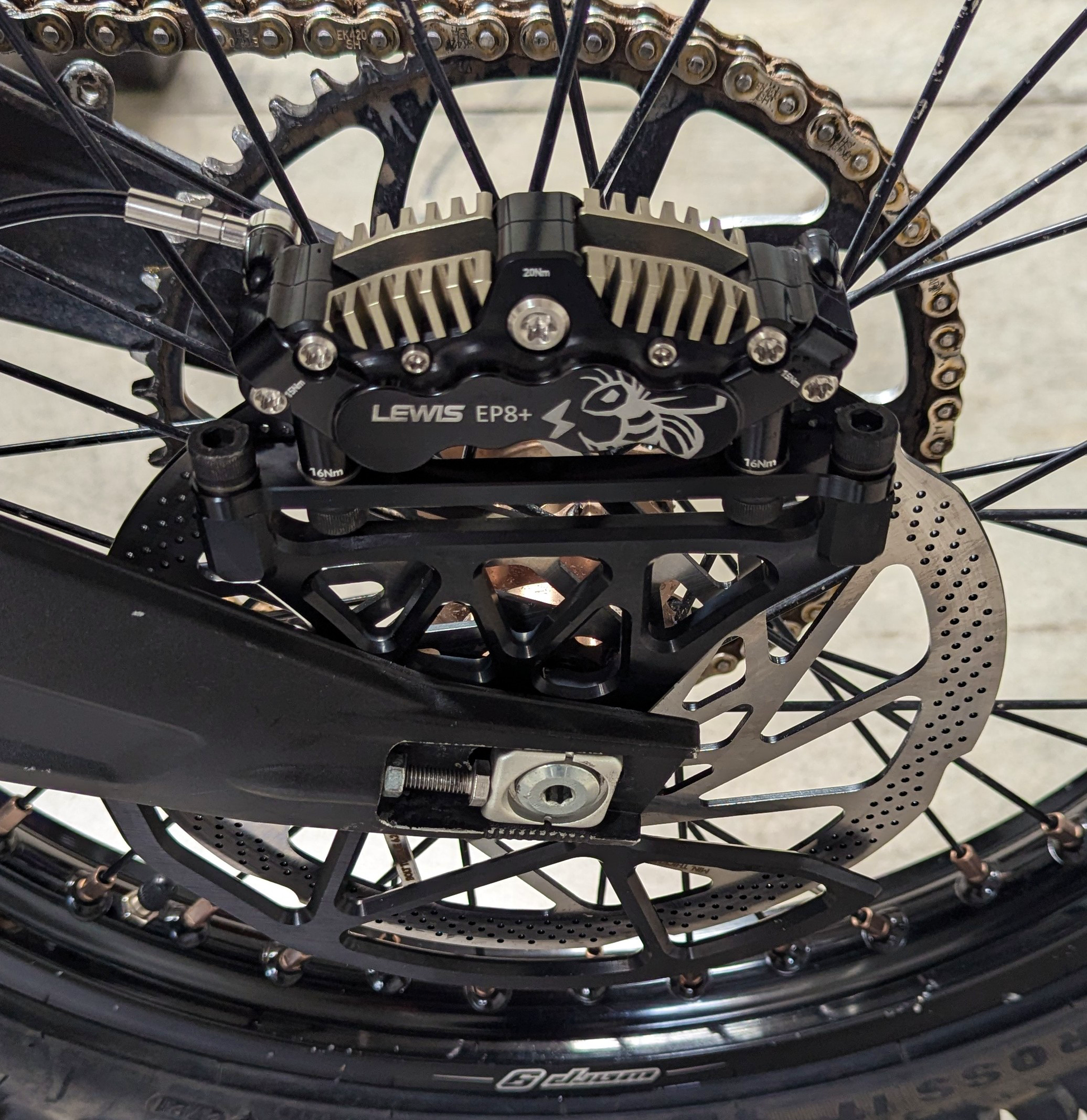

Tailored for electric off-road motorcycles, such as Sur Ron Light Bee, with a larger oil capacity to mitigate changes in feel due to wear.

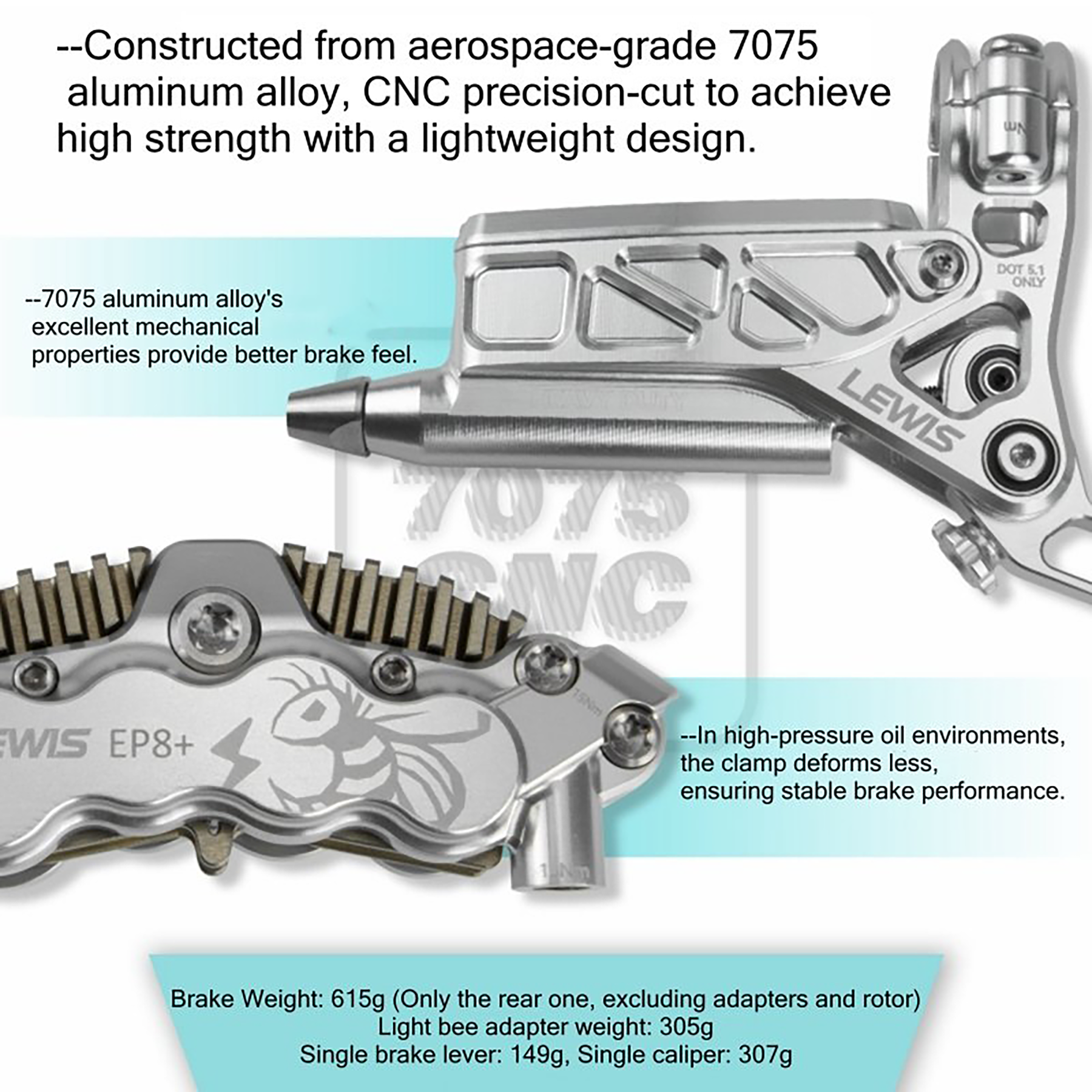

Constructed from aerospace-grade 7075 aluminum alloy, CNC precision-cut to achieve high strength with a lightweight design.

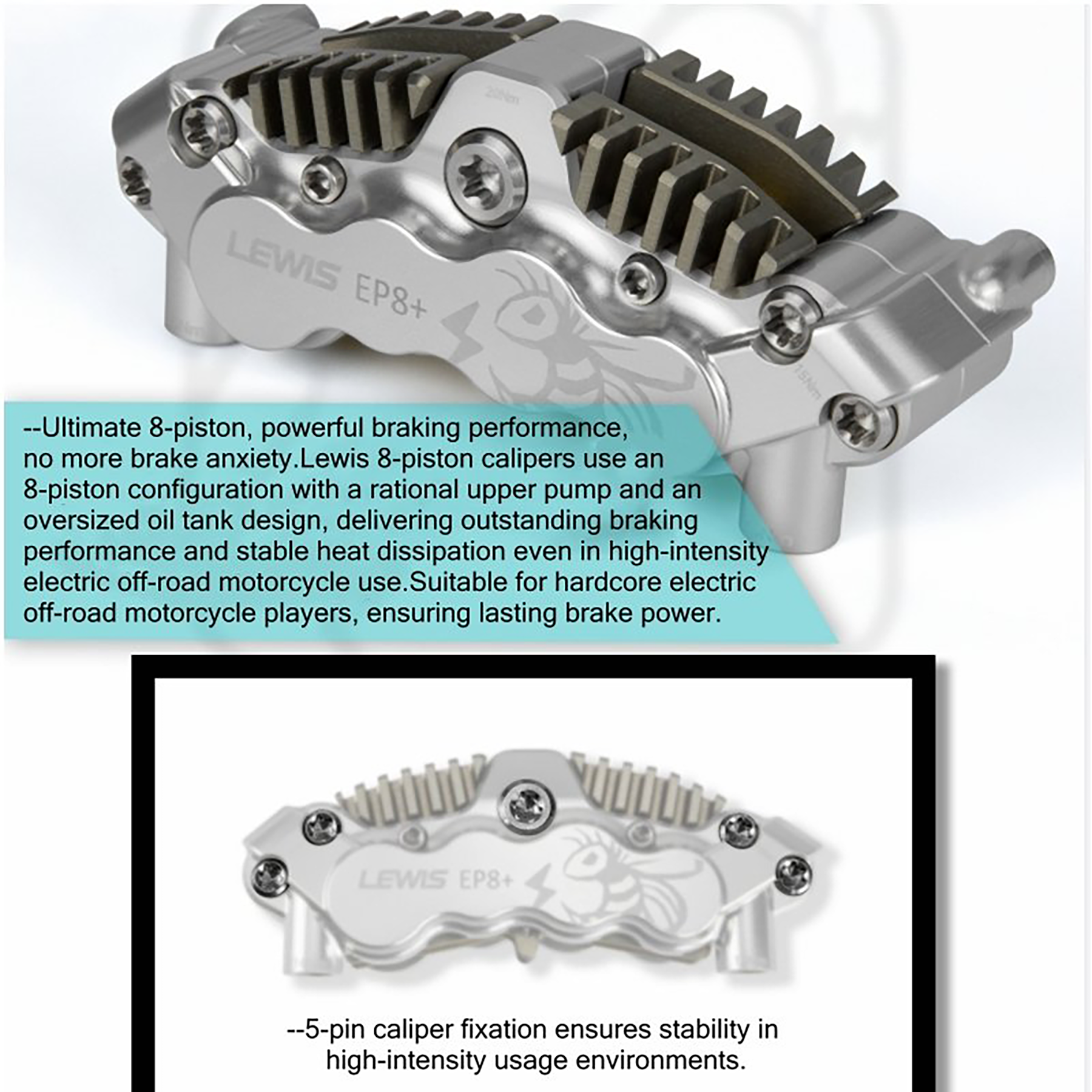

Ultimate 8-piston, powerful braking performance, no more brake anxiety.

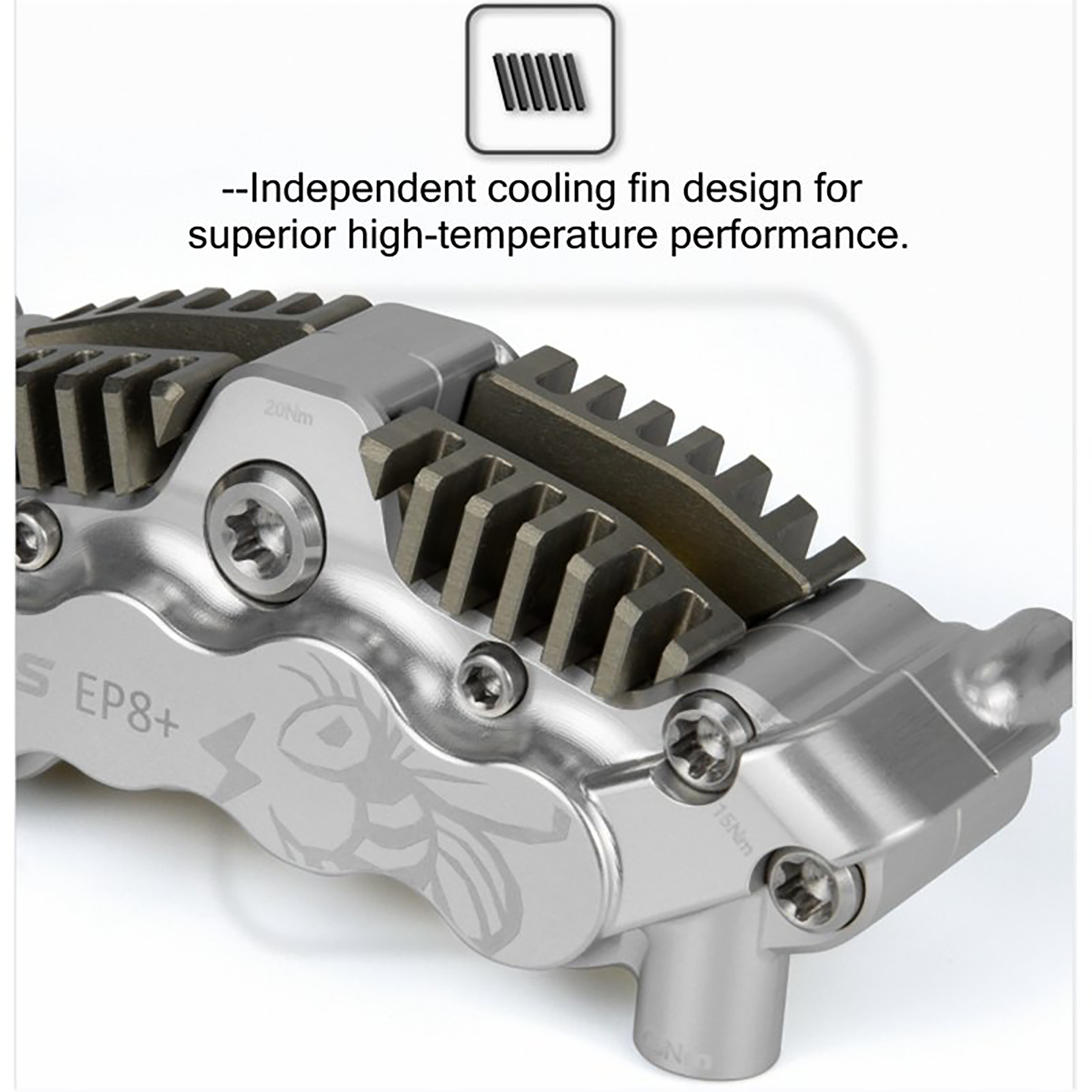

Independent cooling fins design for better high temperature performance.

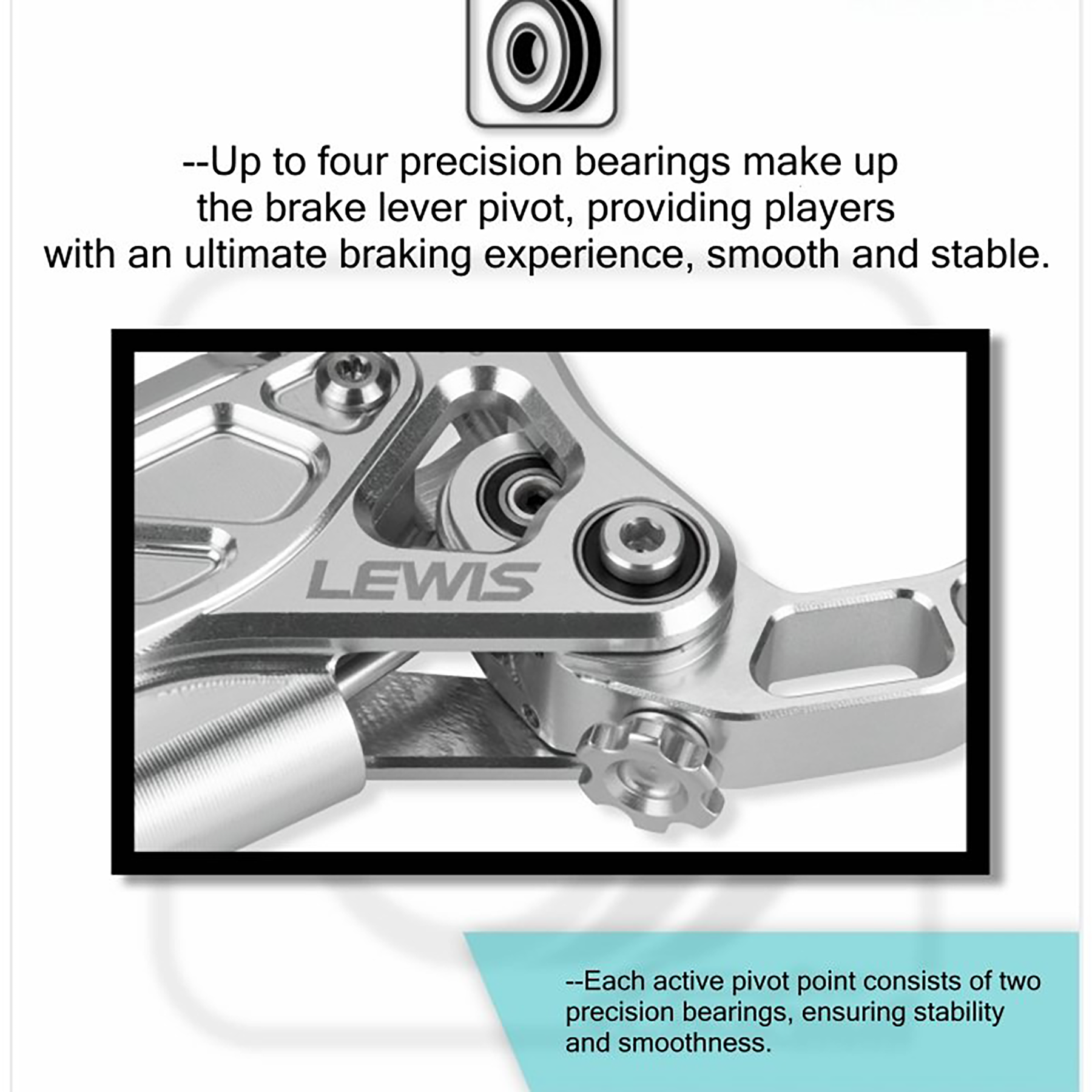

Up to four precision bearings constitute each brake lever pivot, providing riders with an unparalleled braking experience characterized by stability and smoothness.

Fluid: DOT 5.1 (Large oil reservoir design)

Weight: Cylinder 149g, Caliper 307g

Piston: 8 pistons (4x14mm+4x17mm)

Rear Brake weight = 615g(Oil Hose included), 456g without Oil Hose

Adapters for Light Bee = 305g

Disclaimer:

Please note that all Lewis Bike brake orders are placed directly with the manufacturer in China. As a result, shipment may take up to two weeks. We appreciate your patience and understanding as we work to provide you with the highest quality e-moto brakes.

MASTER CYLINDER
Type Axial
Material  CNC 7075T6 Aluminum
Color Black, Silver
Clamp Type  Split
Screws Stainless Steel
LEVER RATIO ADJUSTMENT SYSTEM YES, Tool Free
LEVER REACH ADJUSTMENT Yes, with a provided 2mm Allen key


LEVER BLADE
Material  CNC 7075 T6 Aluminum
Color  Black, Silver


CALIPER
Material  CNC 7075 T6 Aluminum
Color  Black, Silver, Black & Silver, customized colors
MOUNT TYPE Post mount
Piston  4 x 17mm+4x14mm Stainless Steel + Insulation Layers
Screws Stainless steel

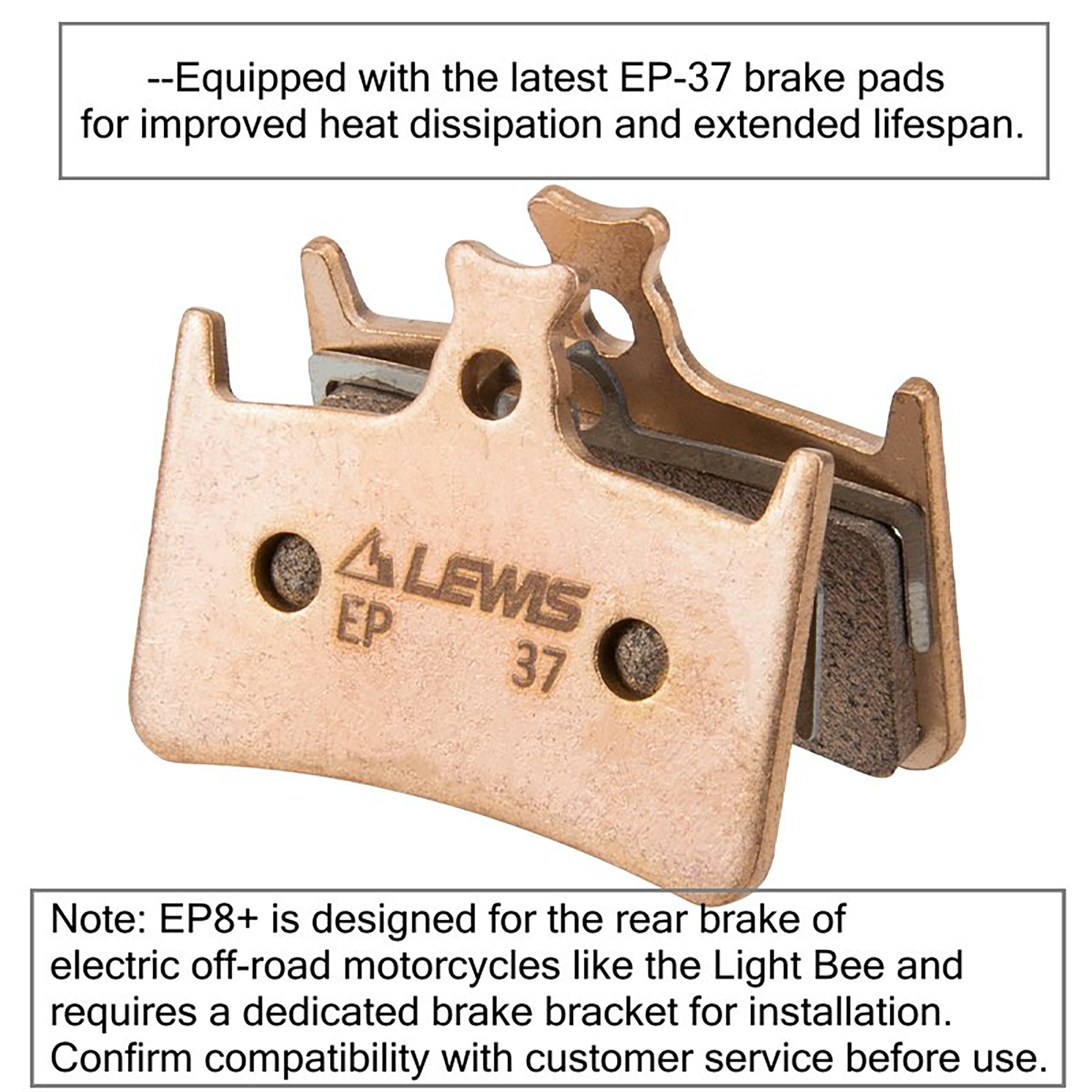

Brake Pads  Metallic EP-37


Hose  K28 Black braided Oil hose
Hose size  Outside Diameter 5mm,Bore 2.2mm
Hose length  165 cm rear
Hose finish  Black, Braided
INTENDED USE

Surron Light Bee E-motorcycle

Rotors  HD220-54 : 3mmx220mm Rotor (Aperture: 54mm)

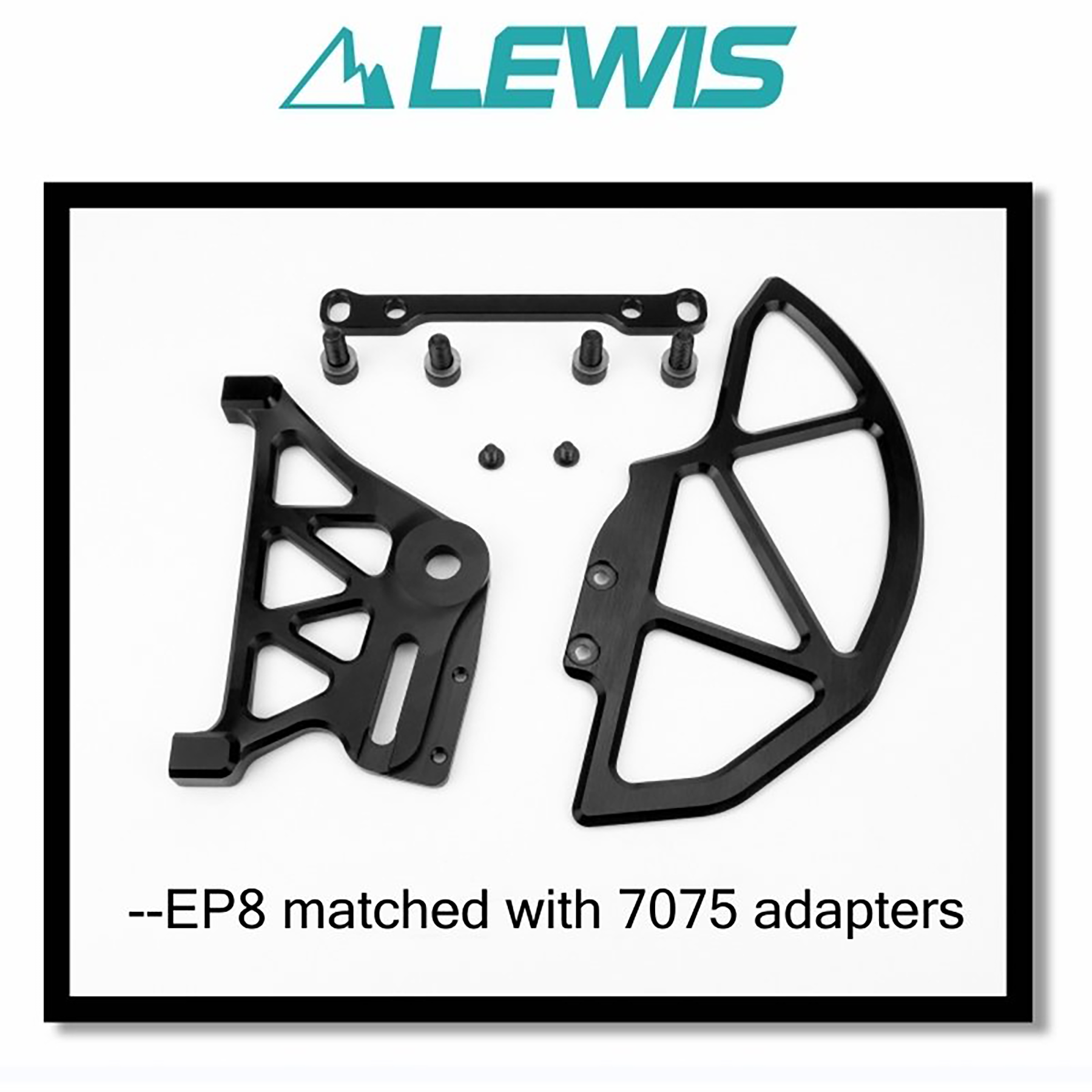

Adapter & Rotor Guard Included
WEIGHT Master Cylinder 149g, Caliper 307g
Oil DOT 5.1(Large oil reservoir design)
Bleed Kit Recommendation EZMTB 2022std
