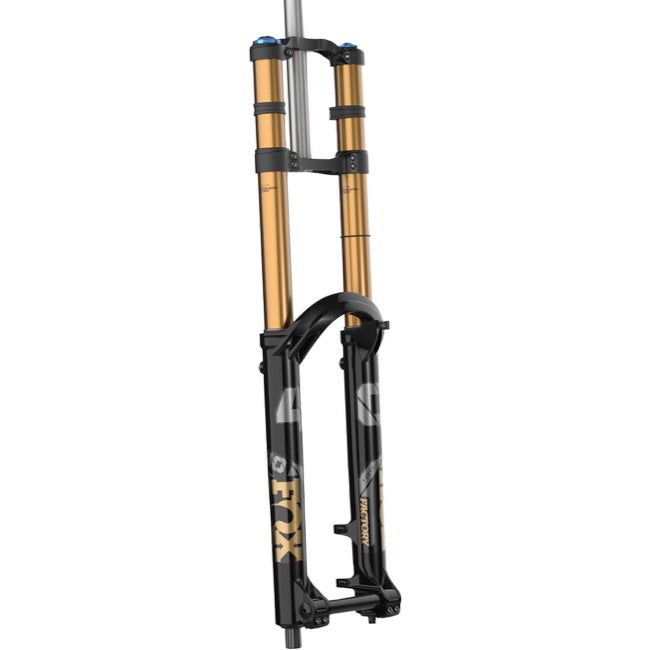

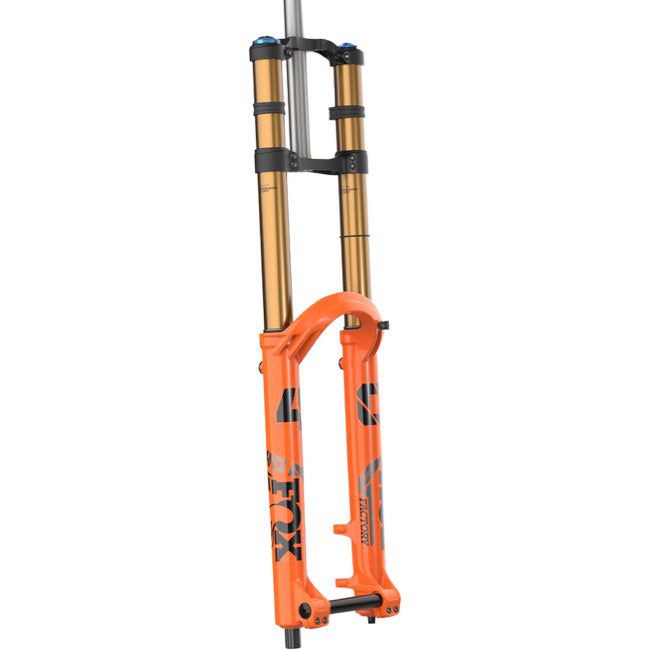

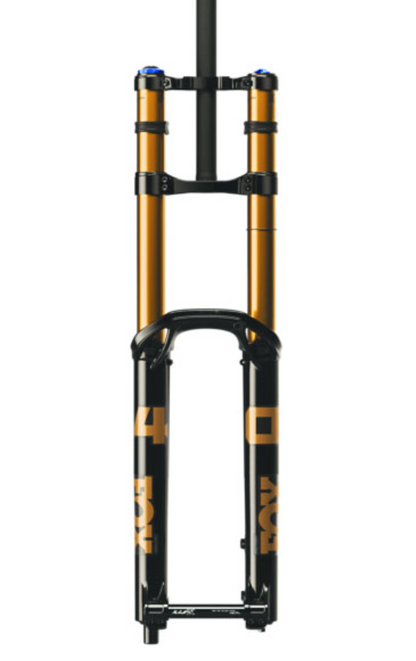

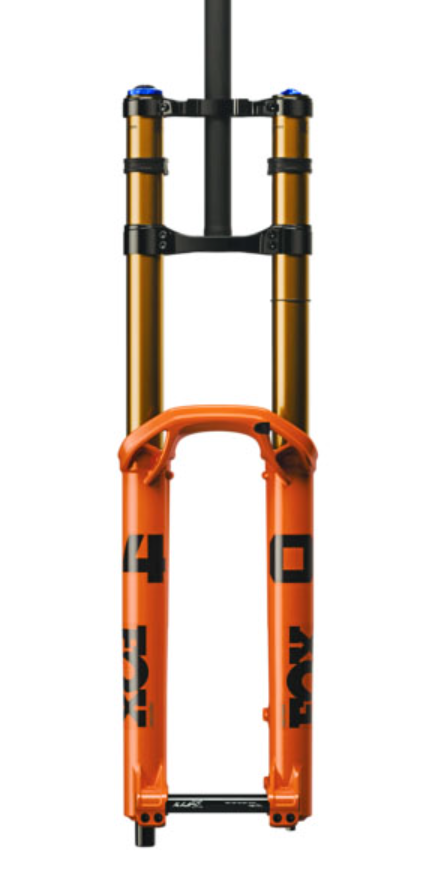

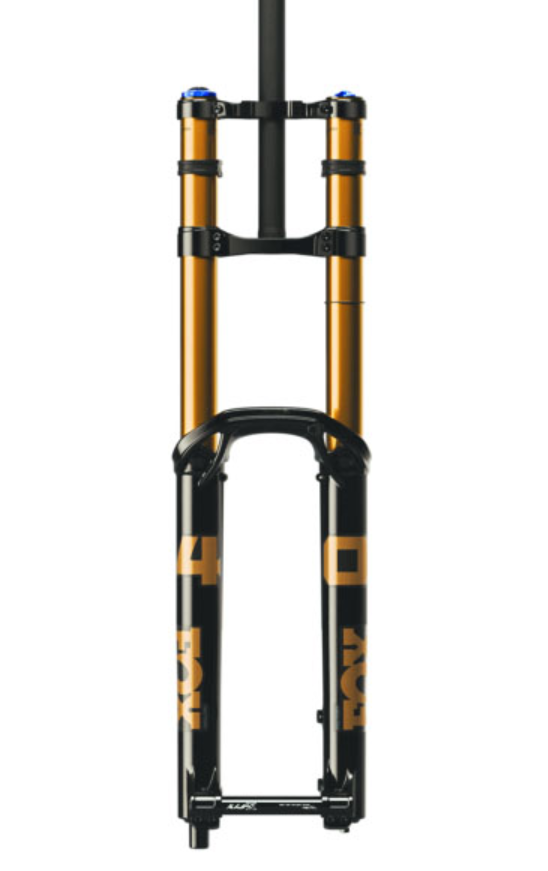

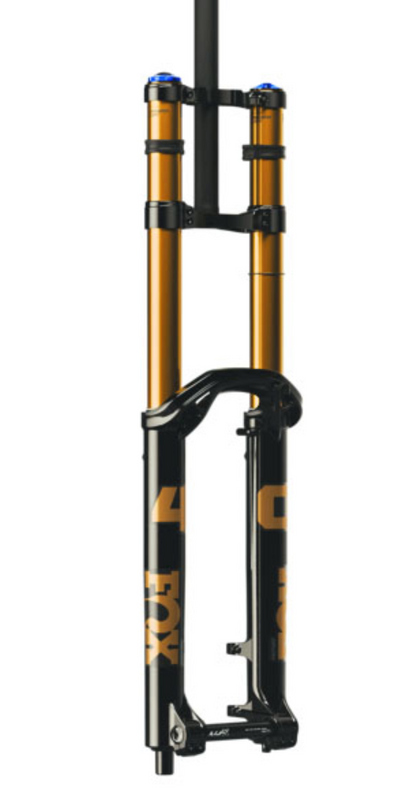

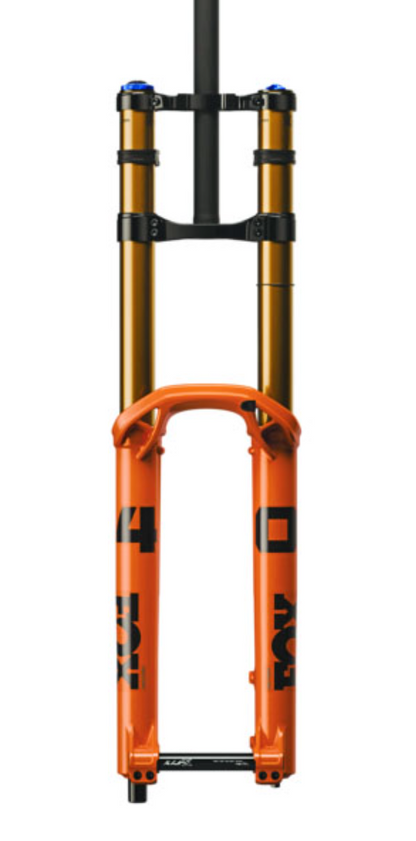

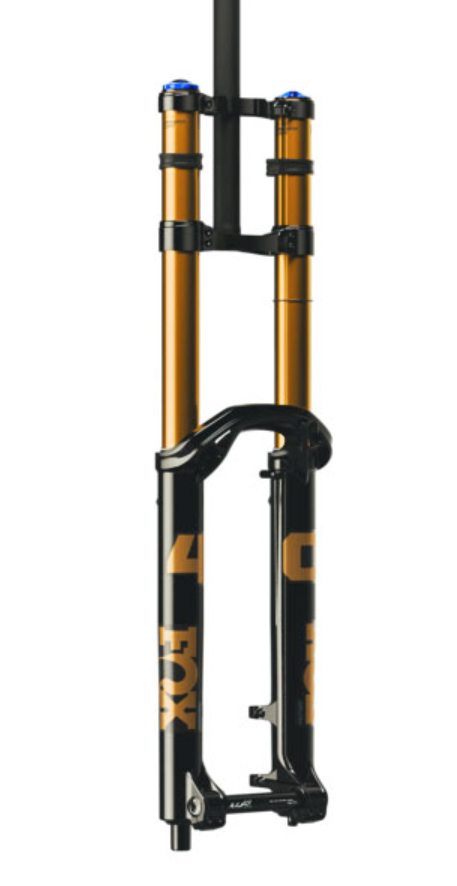

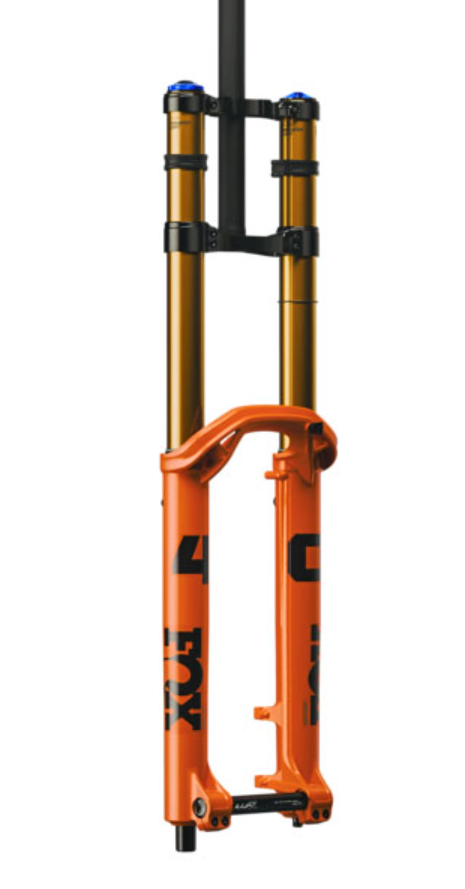

Fox 40 Factory Fork, 203mm Travel, Grip X2 Damper, GlideCore Air Spring (2026)
Fox 40 Factory Fork, 203mm Travel, Grip X2 Damper, GlideCore Air Spring (2026)
Regular price
$1,999.00
Regular price
Sale price
$1,999.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Model: | 40, F-S, Grip X2, HSC, LSC, HSR, LSR |
| Wheel Size: | 29" |
| Steerer (Stem/Race): | Straight (28.6/30mm) |
| Offset: | 52mm (29) / 48mm (27.5) |
| Travel: | 203mm |
| Spring Type: | GlideCore |
| Brake Mount: | Disc Only (PM-203) |
| Dropout: | 20x110mm Boost |
| Weight: | 2755g |
| Color: |
Shiny Black or Shiny Orange |
- Updated damper, air spring, and lower legs make this the fastest 40 ever
- Retuned Grip X2 damper with high speed compression, low speed compression, high speed rebound, and low speed rebound controls
- GlideCore vertically and horizontally compliant air spring with MCU bottom-out bumper and increased neg volume
- Generative-designed lower legs with refined arch and relocated internal bypass channels
- Updated bleeders allow for atmospheric pressure equalization providing more usable travel and better small bump sensitivity
- Factory Series with slippery smooth, ultra-durable Kashima stanchion coating
- 180mm to 230mm rotor compatible post mount
- Floating axle precisely aligns the dropout surface to the front hub end caps eliminating unwanted friction between the upper and lower fork legs
- Splined cassette tool air side top cap
