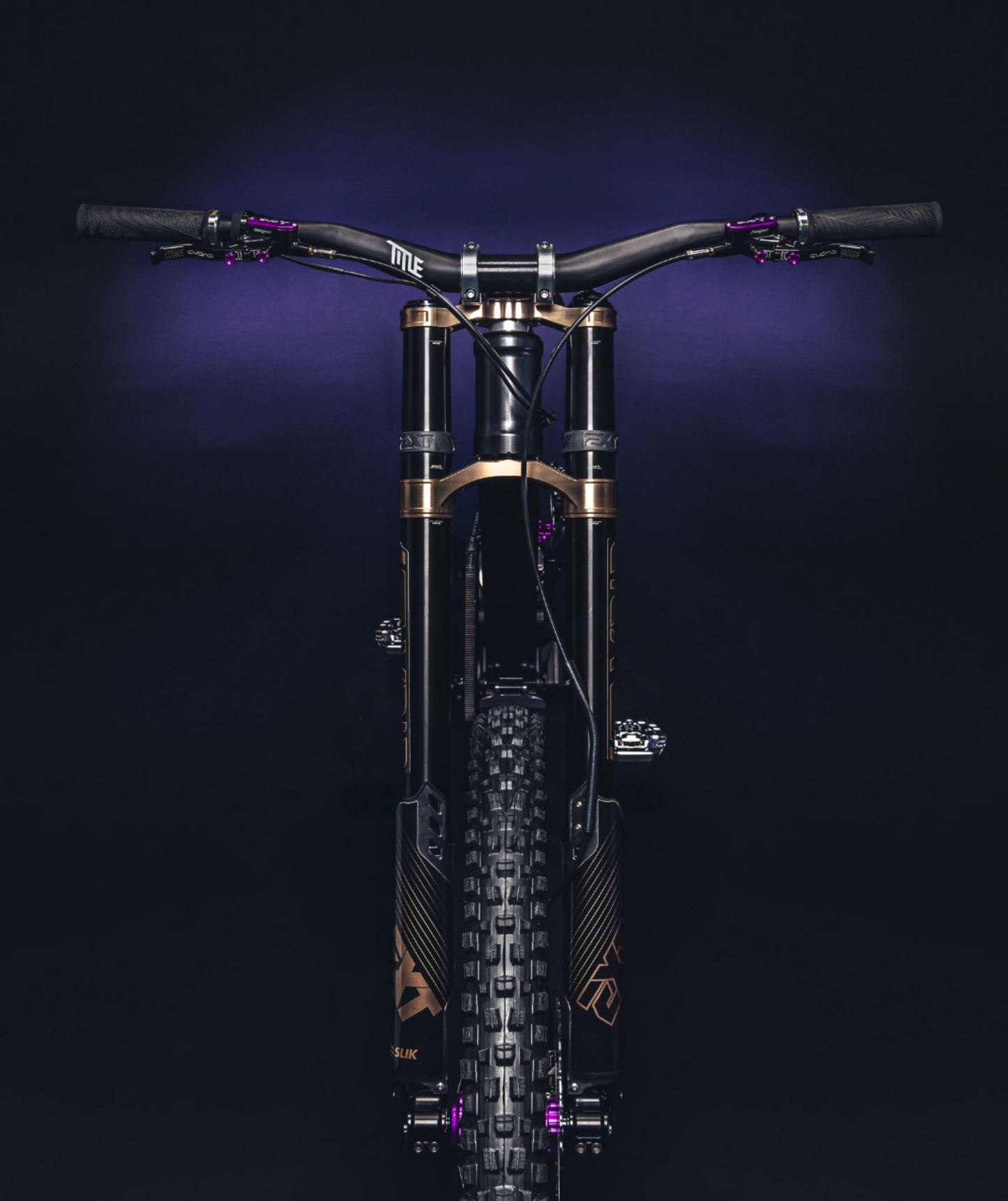

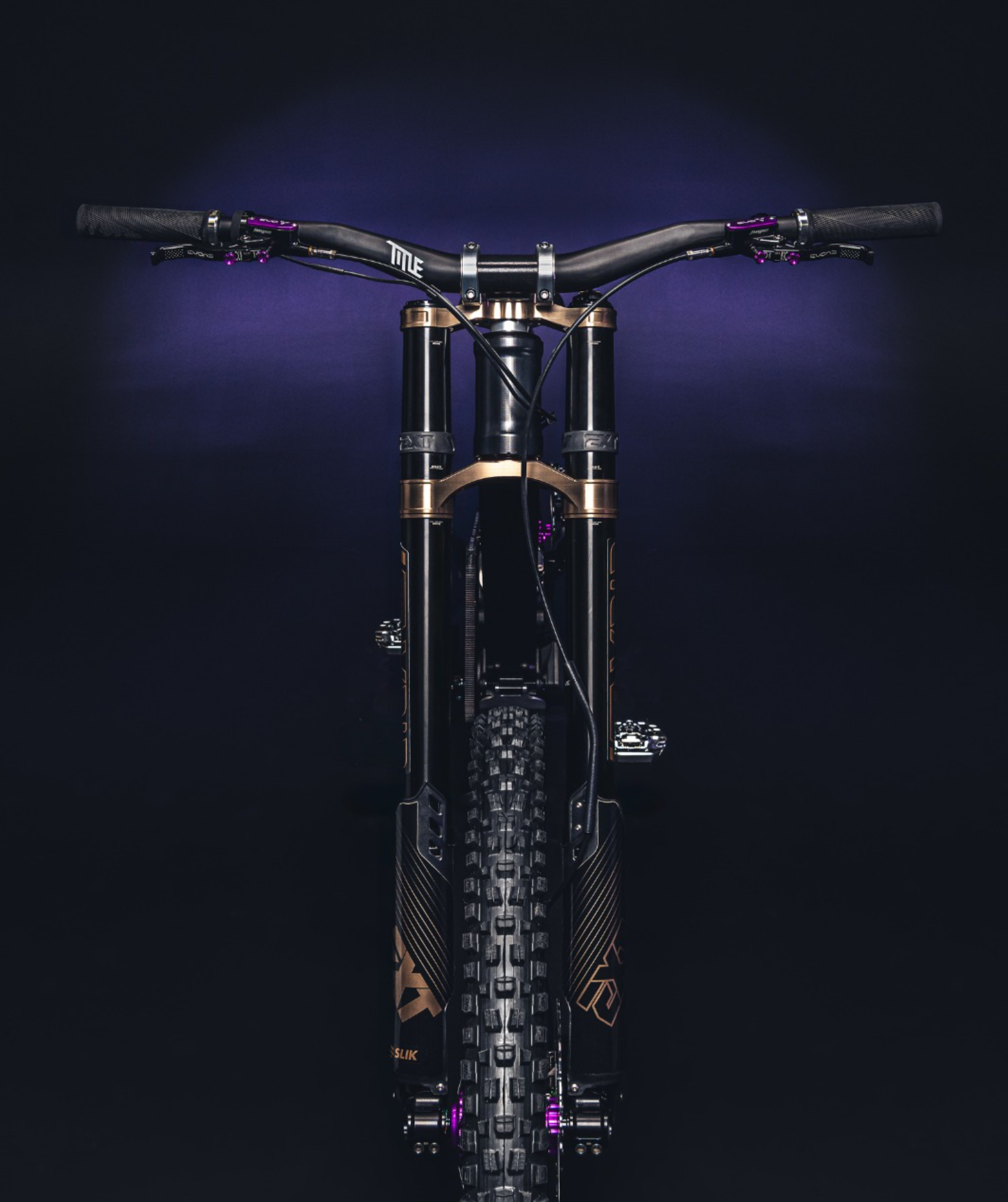

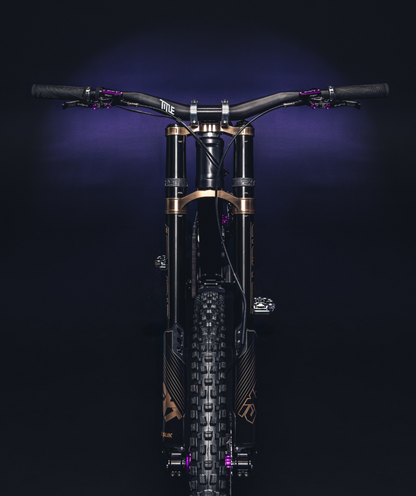

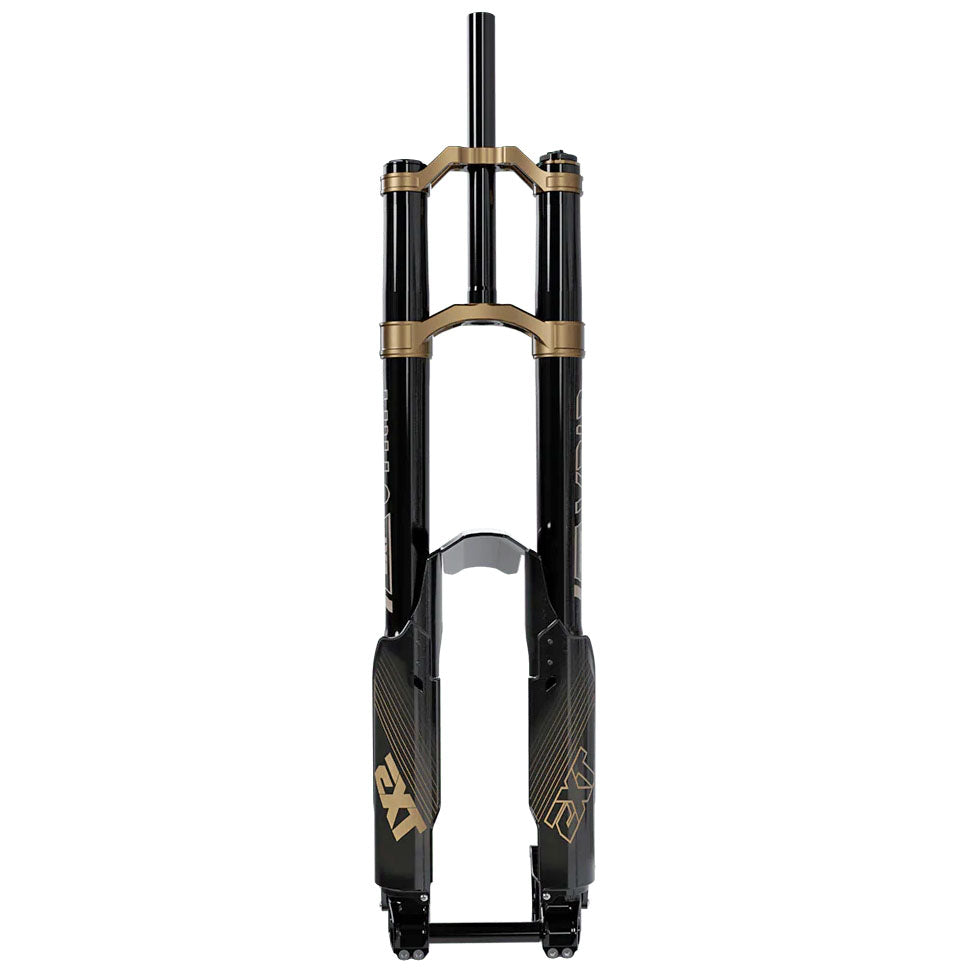

EXT Vaia USD (Inverted) Downhill Air Fork, 200mm Travel, 44/48m Offset

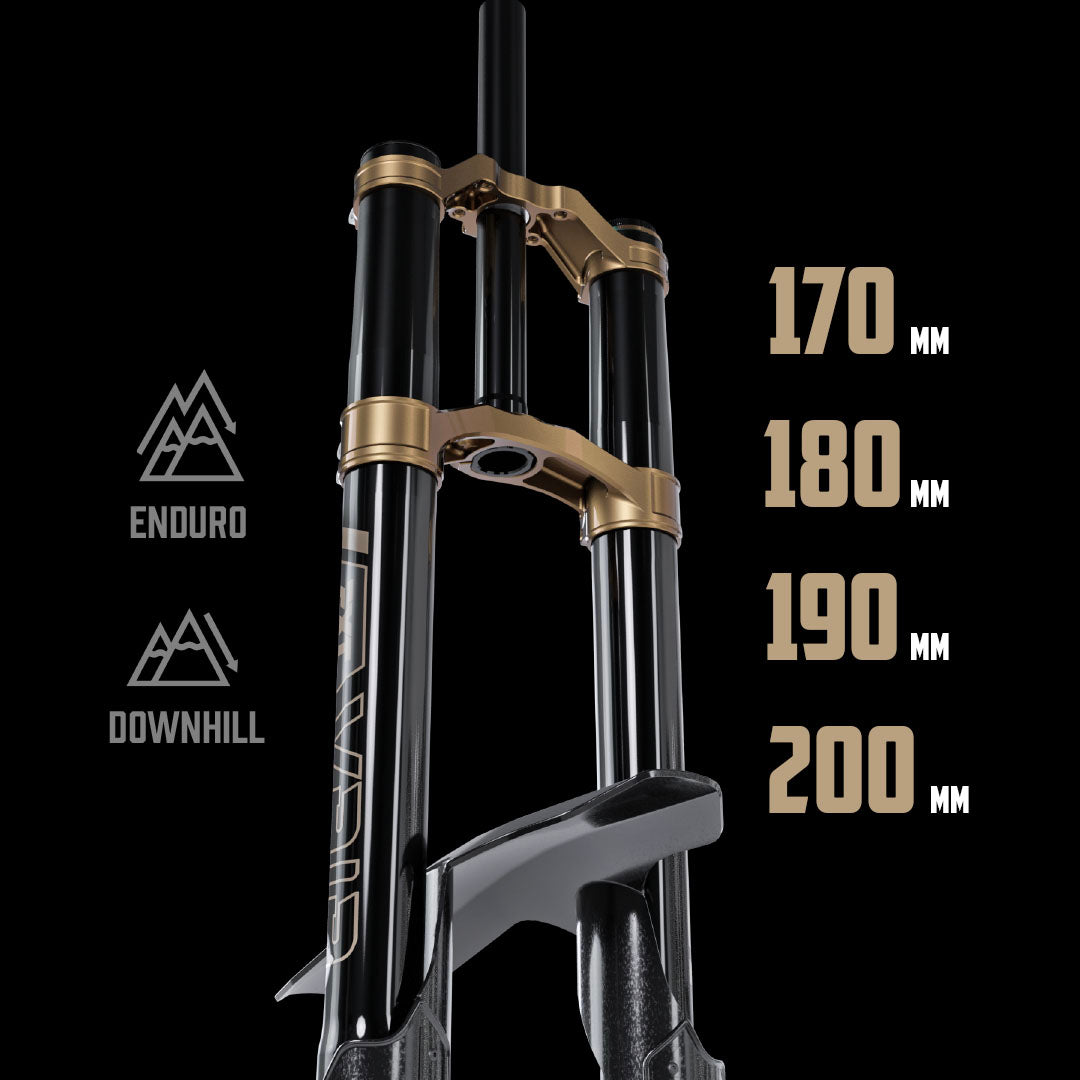

EXT Vaia: setting a new benchmark in suspension design. Built with cutting-edge technology for gravity riding, it stands out as a truly innovative solution. Designed for downhill but adaptable to aggressive enduro and e-MTB use, the Vaia offers travel from 170 mm to 200 mm and compatibility with both 15 mm and 20 mm axles, making it a powerful and versatile option for demanding riders.

CORE FEATURES

• Built entirely in 7075 and 7050 T6 alloy and Grade 5 Titanium
• Tapered 38.5 stanchion tubes optimize the strength to weight ratio, offered with our proprietary surface finish
• Direct mount 200mm rotor compatible

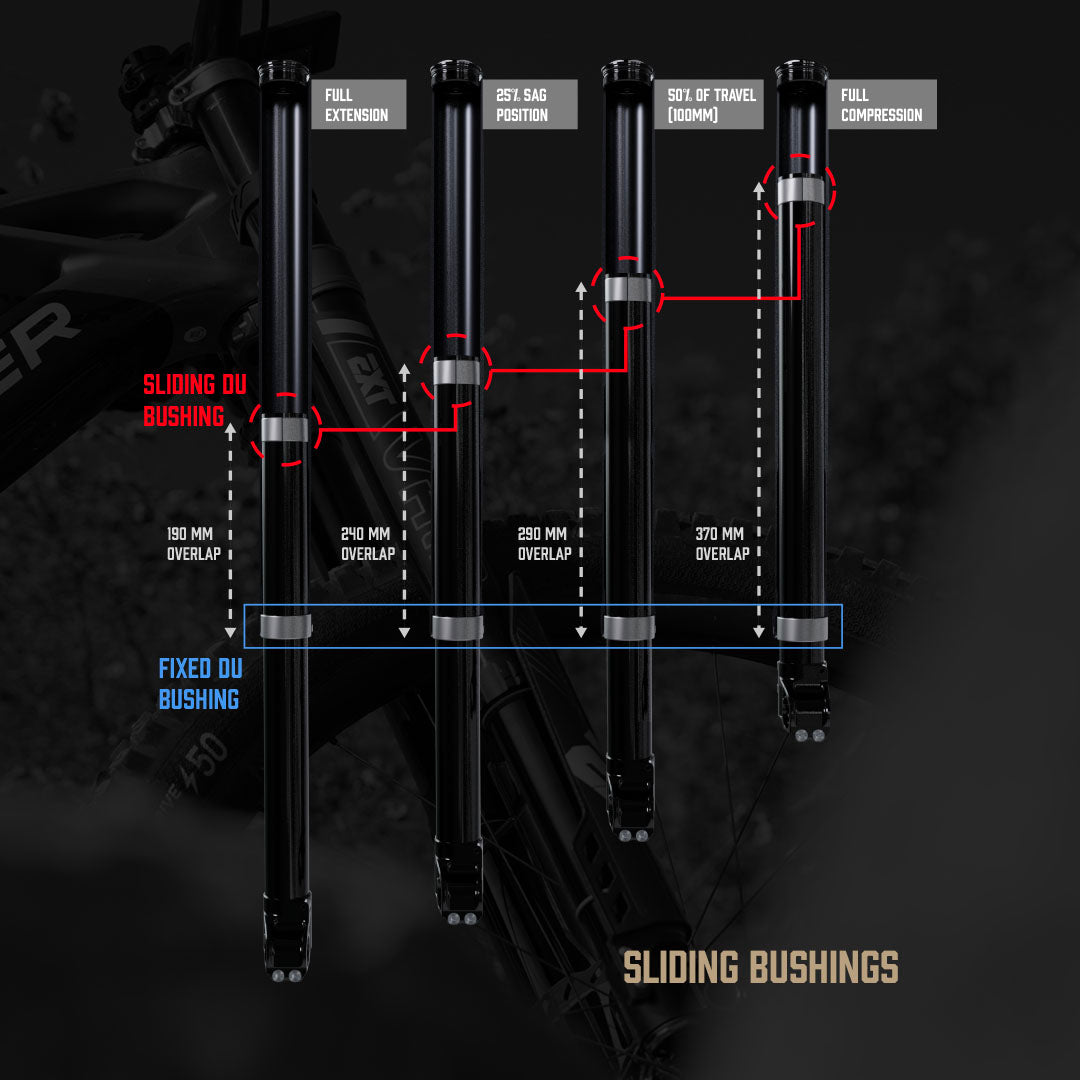

• Floating bushing system design with an impressive overlap (240 mm around SAG position) with 200 mm travel, ensuring consistent sensitivity and torsional stiffness for riding precision while braking and cornering
• Adjustable high/low speed compression and rebound cartridge with low friction seals, high dynamic response valves and turbulent flow, assures performance in extreme working conditions

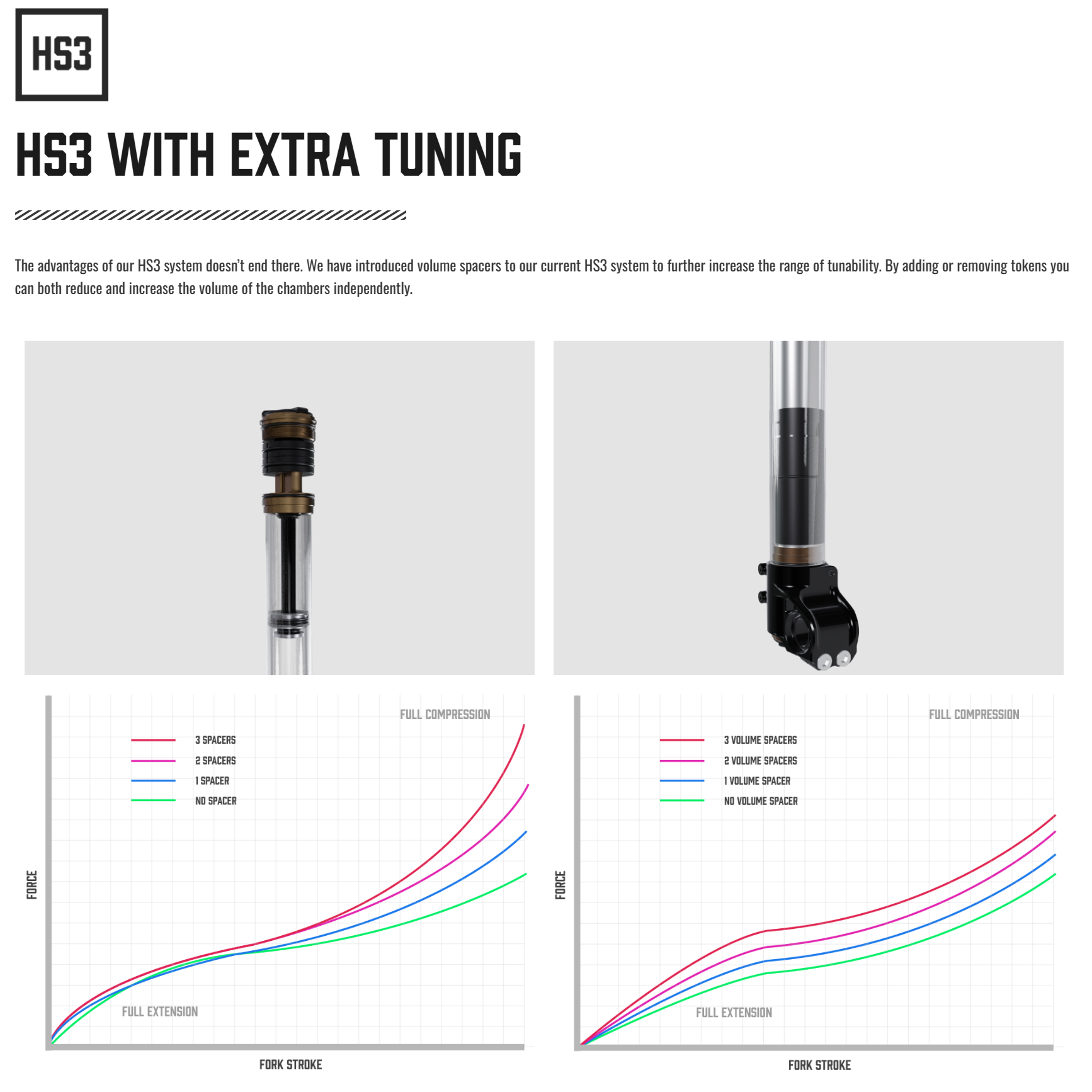

• HS3 air cartridge unit with 2 independent positive air chambers as well as an innovative negative chamber with a tunable volume design for increased sensitivity and adjustability
• Pressure release bleed buttons to release air on both fork legs
• Optimized inner volume design ensures maximum lubrication for sliding bushing system

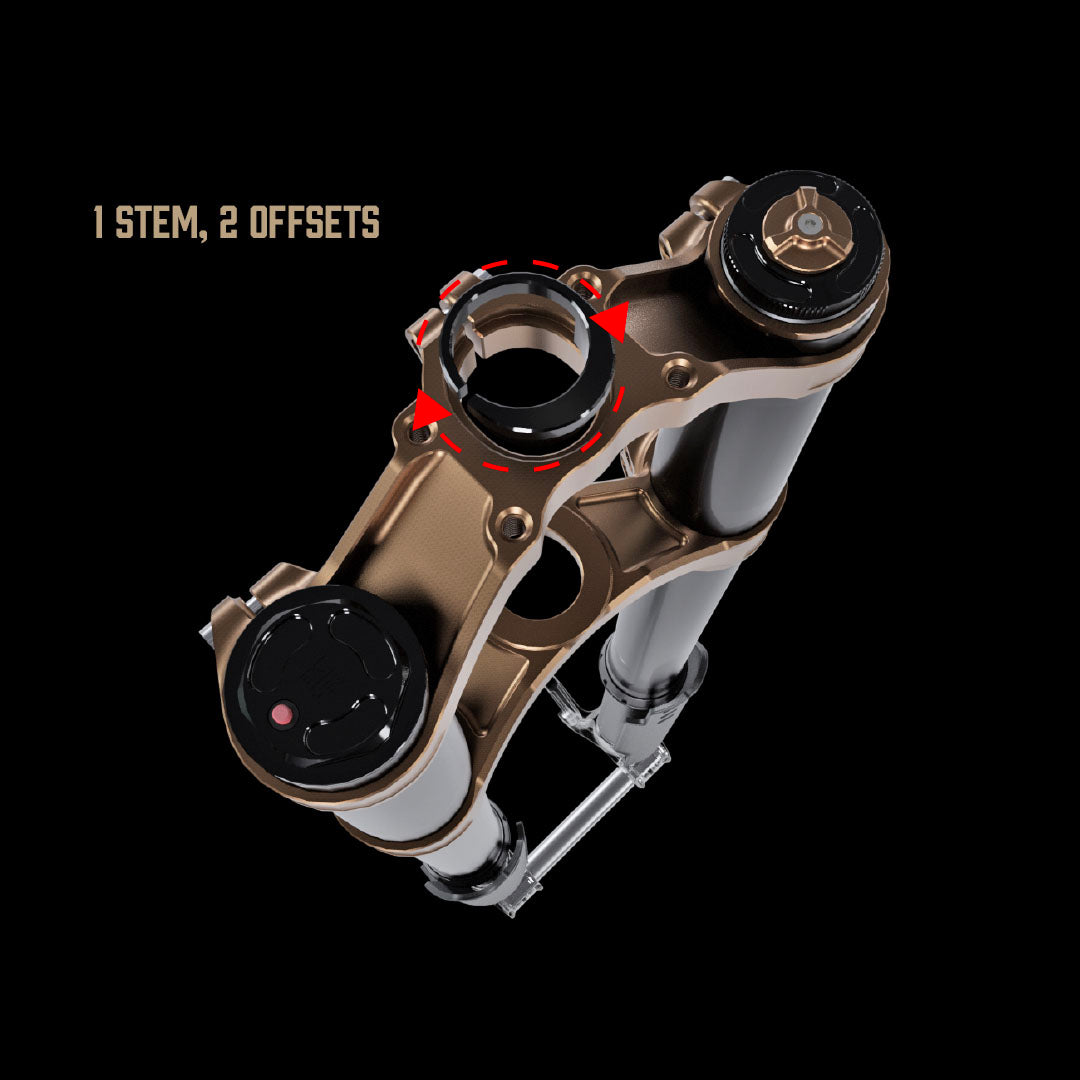

• Unique double crown design offers 2 offsets, from 44 to 48 mm, enhancing personal adjustment on steering geometry without having to purchase additional crowns

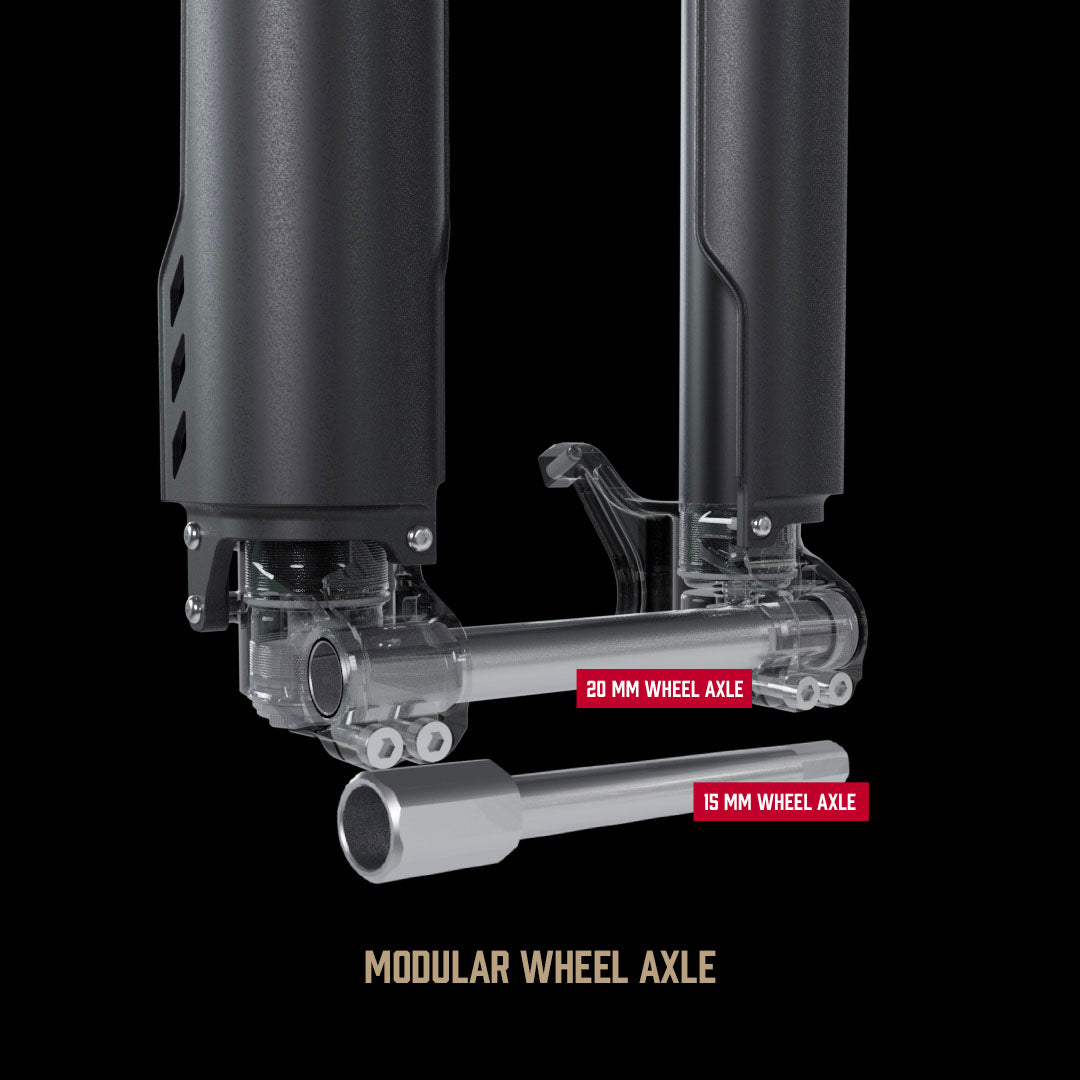

• Available with interchangeable 20 mm and 15 mm Grade 5 Titanium wheel axles for both maximum stiffness and rigidity
• Dedicated stanchion protection with available bolt on fender
• Weight: 3195 gr (in 200 mm travel with 20 mm wheel axle, cut steerer tube, oil included)

NOTE: Hub spacing is standard boost 110mm that most modern DH, Trail and Enduro front wheels.

• 180mm travel fork ships standard with a 15mm axle
• 190/200mm travel fork ship standard with a 20mm axle
