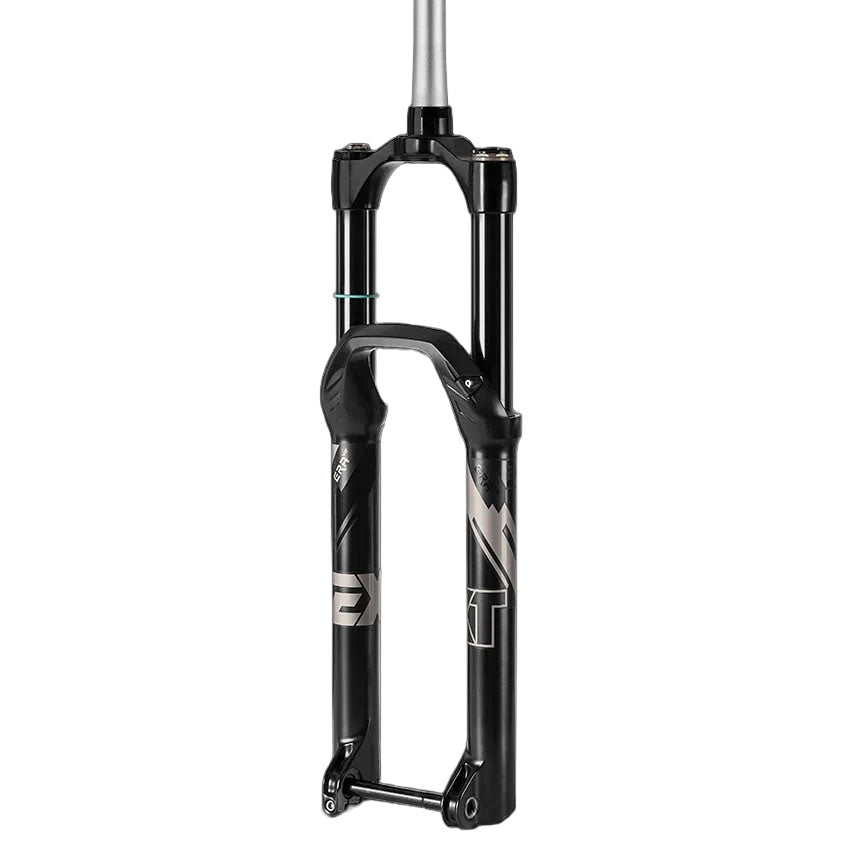

ERA V2.1 (130-170mm)

ERA V2.1 (Enduro racing air fork)

The ERA V2.1 fork uses the HS3 hybrid air spring. Two positive air chambers work with one, high volume self-activating negative air chamber. Combined with a high-volume damper cartridge this system offers incredible tuning capability and sets a new level for support in a suspension fork.

The Era V2.1 introduces features and upgrades that aims to improve the experience, safety and performance of the previous production.

V2.1 Features:

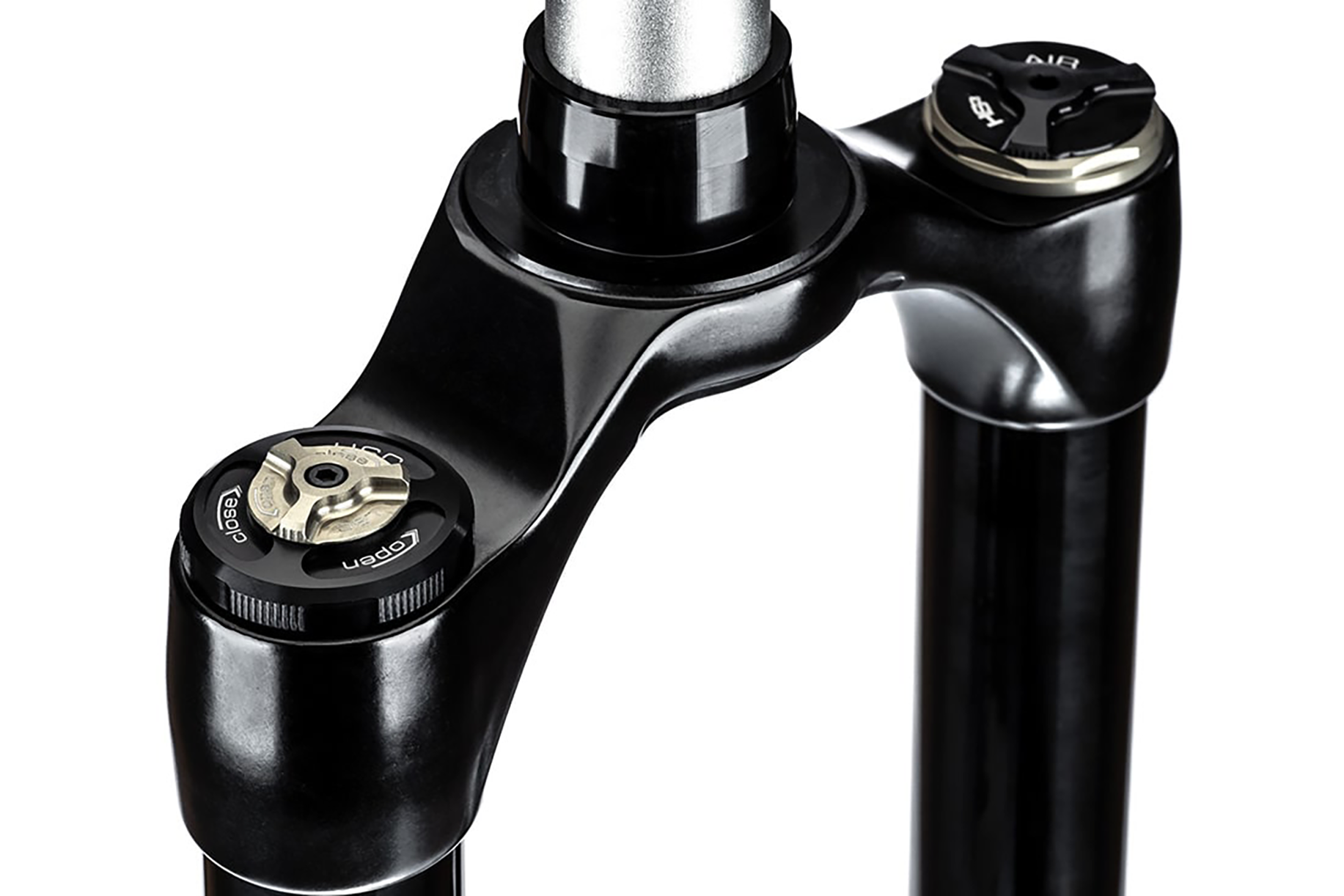

• HS3, Hybrid coil and air spring: with 2 adjustable positive air chambers and high volume negative chamber.
• New Crown design: forged AL 7050 T6 to substantially increase stiffness.
• High volume Cartridge with Ø22 mm piston, engineered circuit to separate bump and rebound oil flow.
• HDRV unique compression valve system Ø24 mm piston.IFP reservoir Ø24 mm piston.

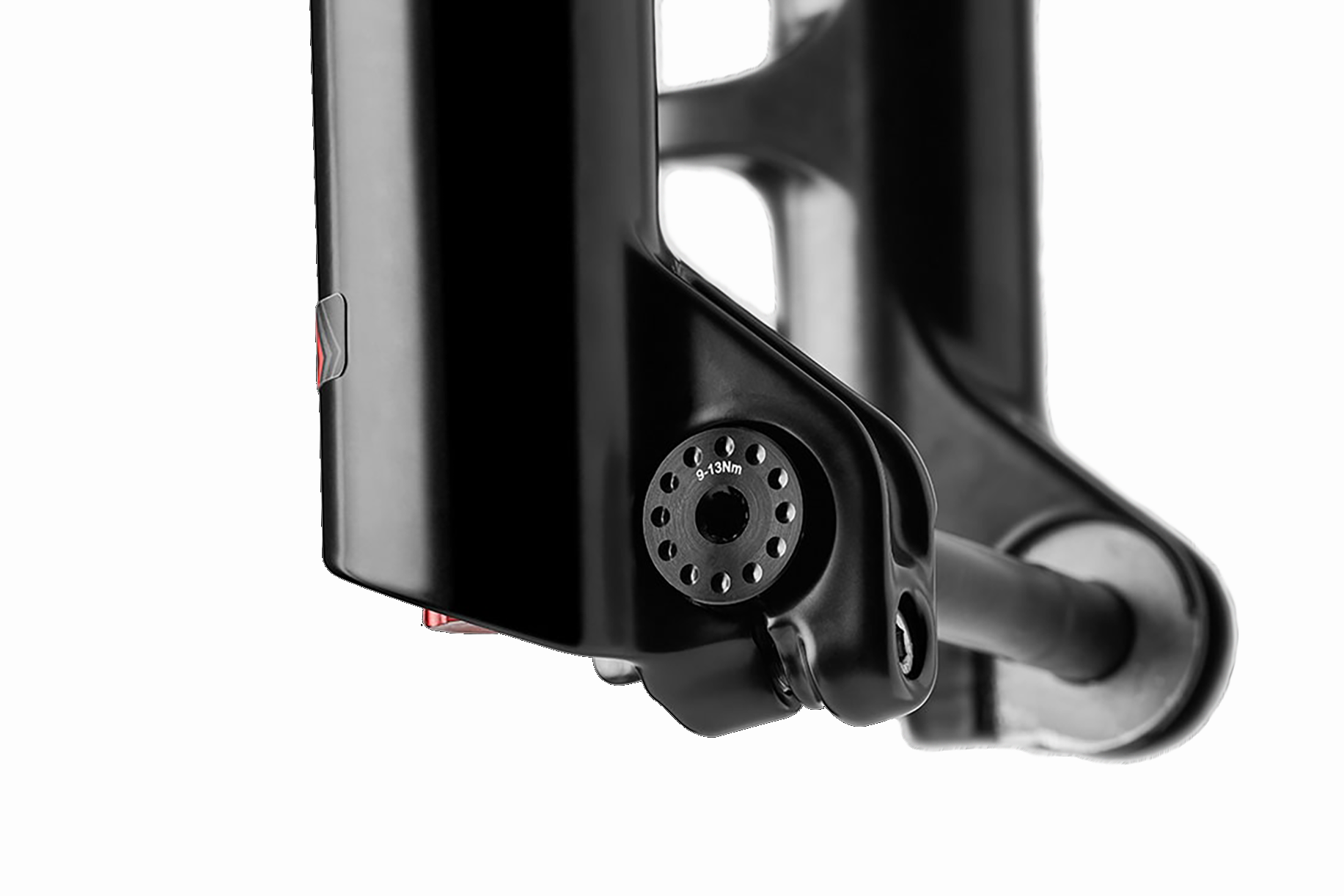

• Dropout 15QR Boost Torque Cap® compatible (15×110 mm).

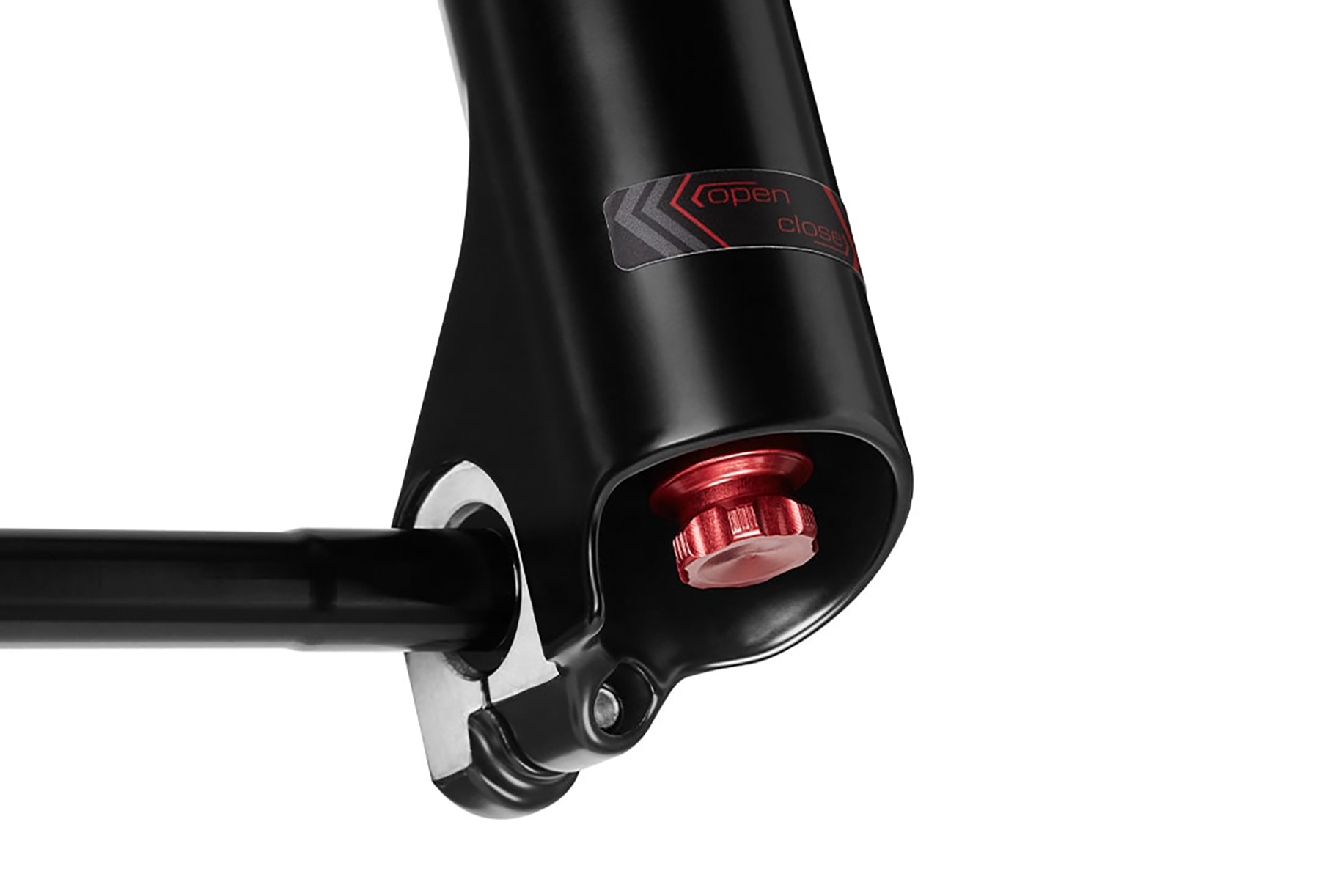

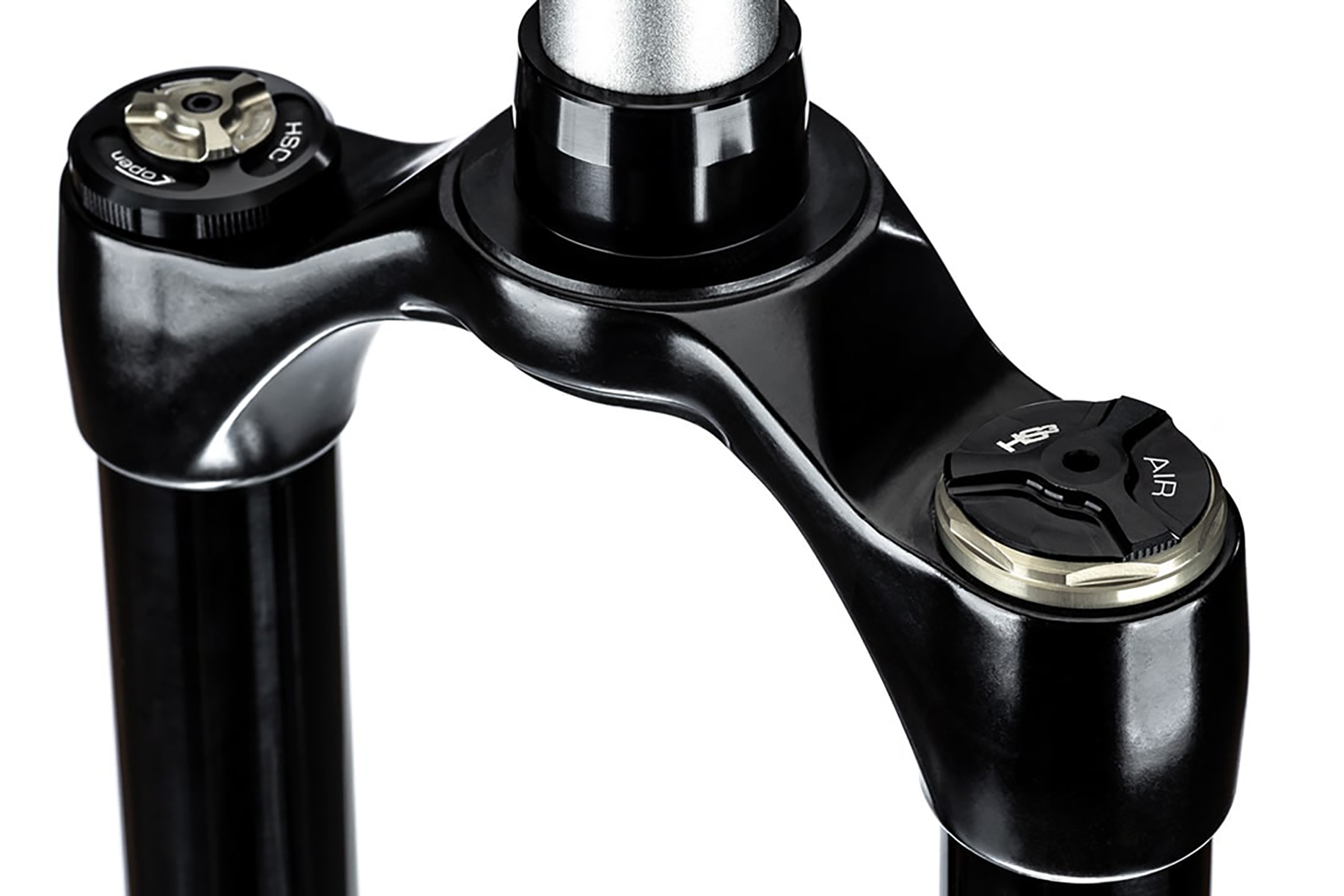

• 3 way adjustable, Low and High speed Bump and Rebound.
• Main strut low friction system: new DU bushing material from our WRC technology combined with dedicated EXT oil.
• Cartridge and Air spring low friction System: innovative floating shaft guide combined with the EXT proprietary coating and superfinish chrome shaft.

Available in the following travel lengths: 140mm, 150mm, 160mm, 170mm
