e-STORIA

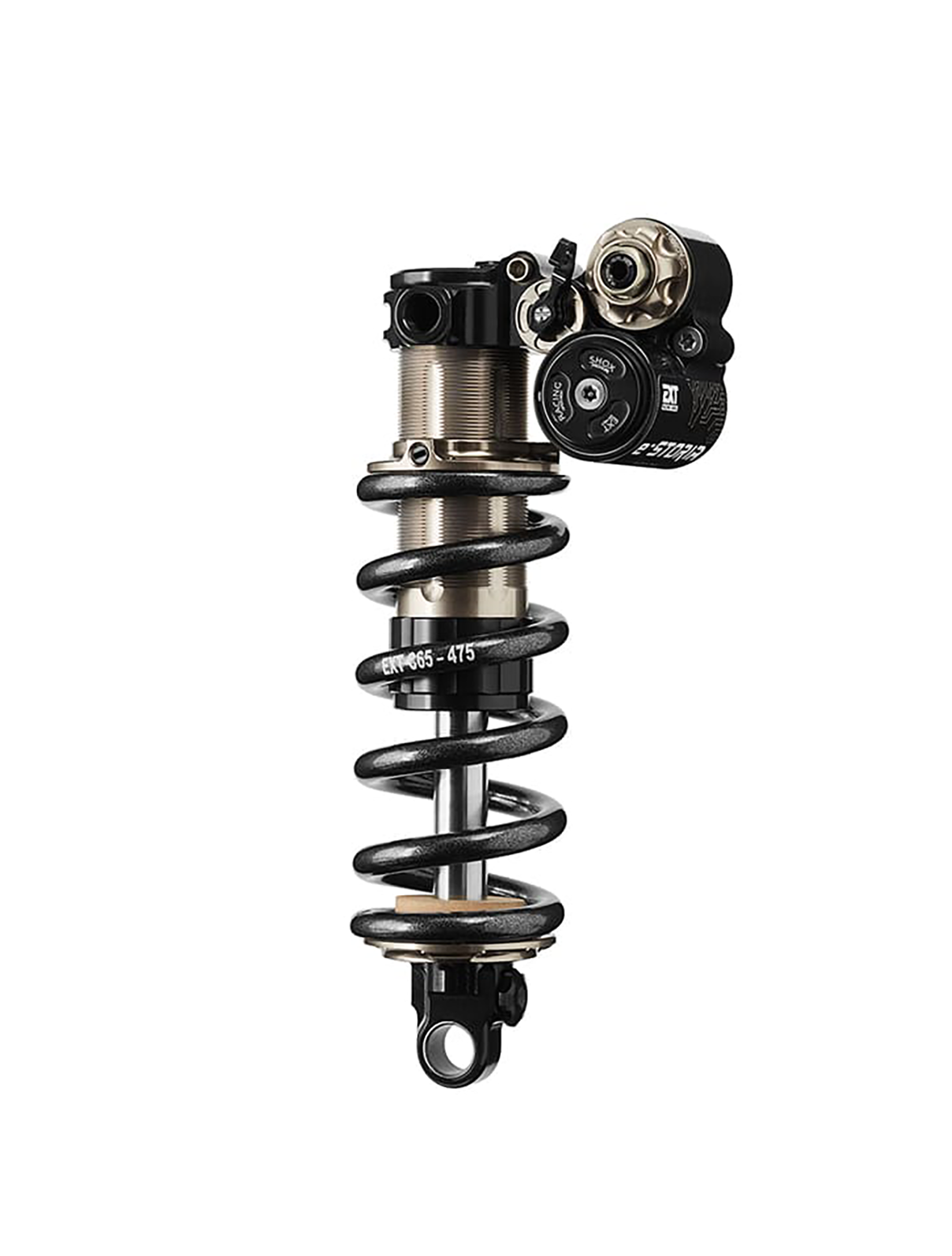

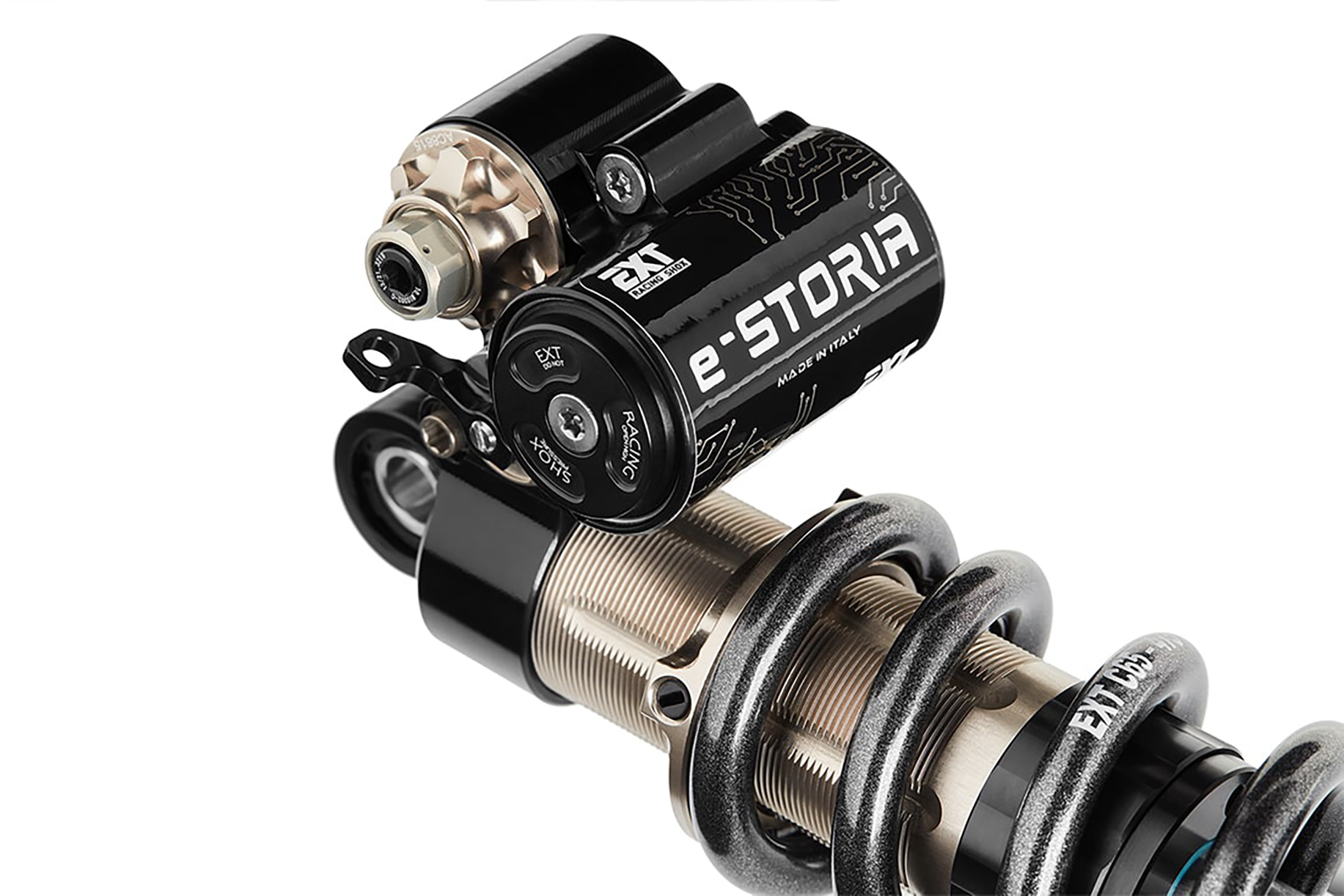

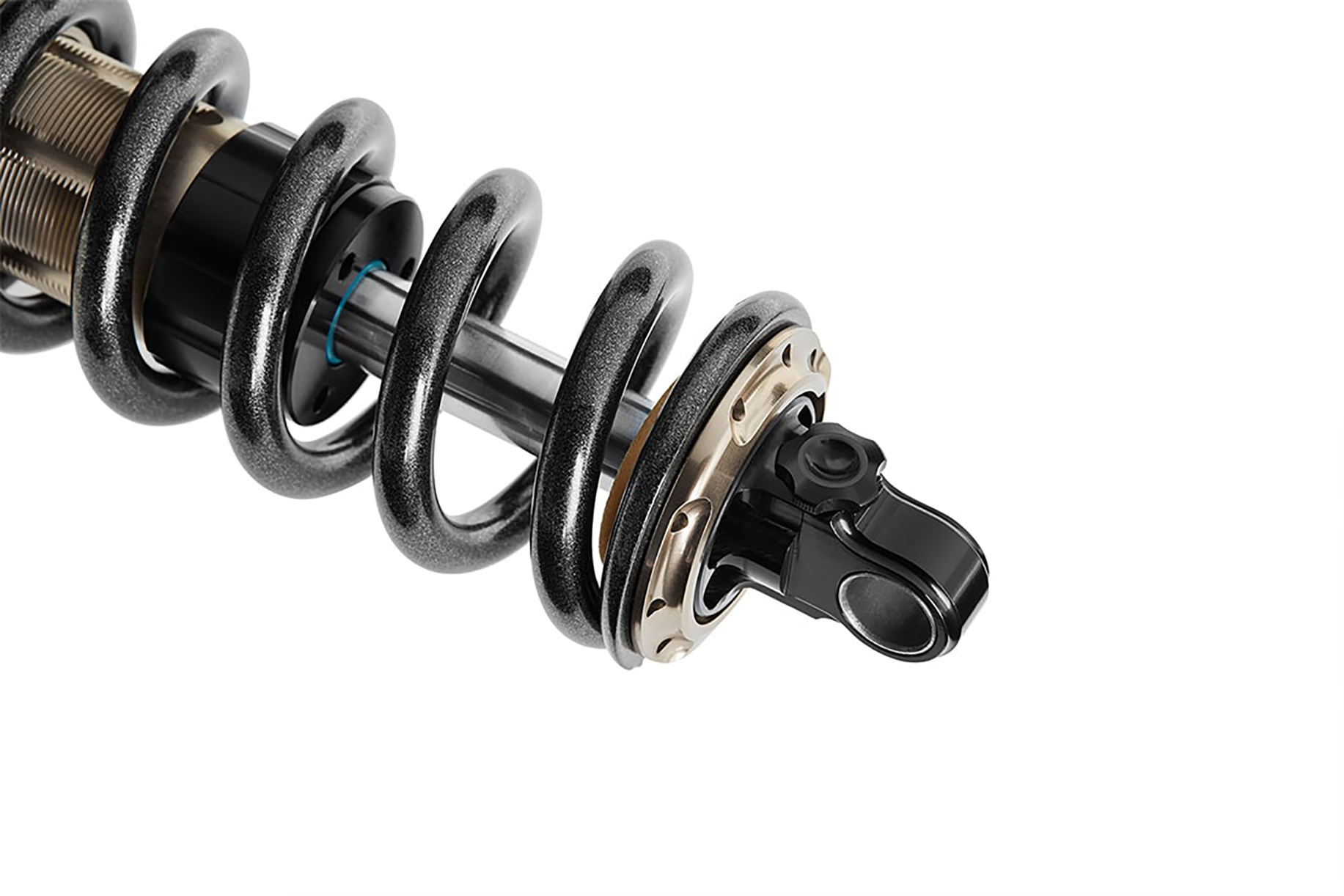

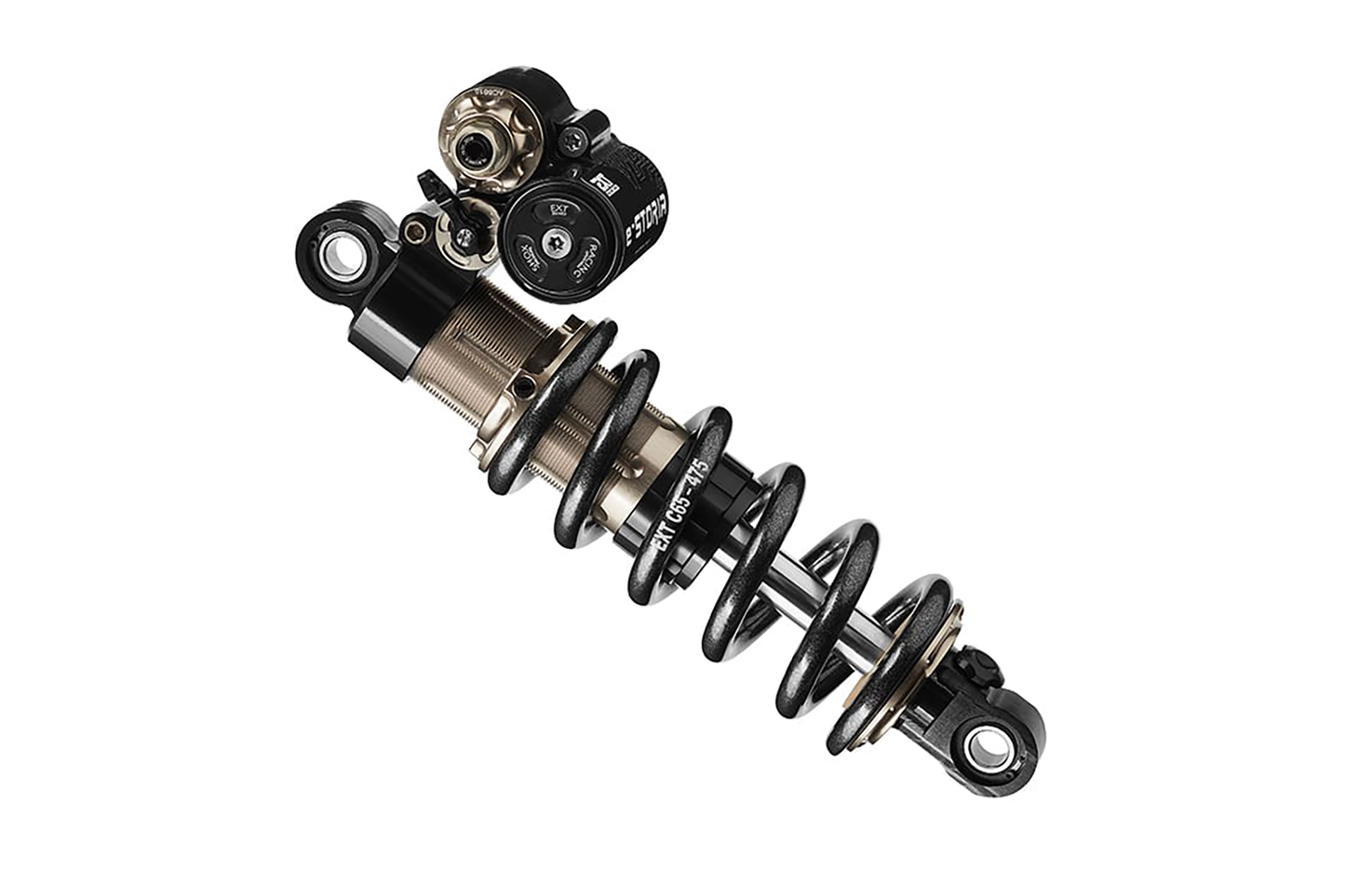

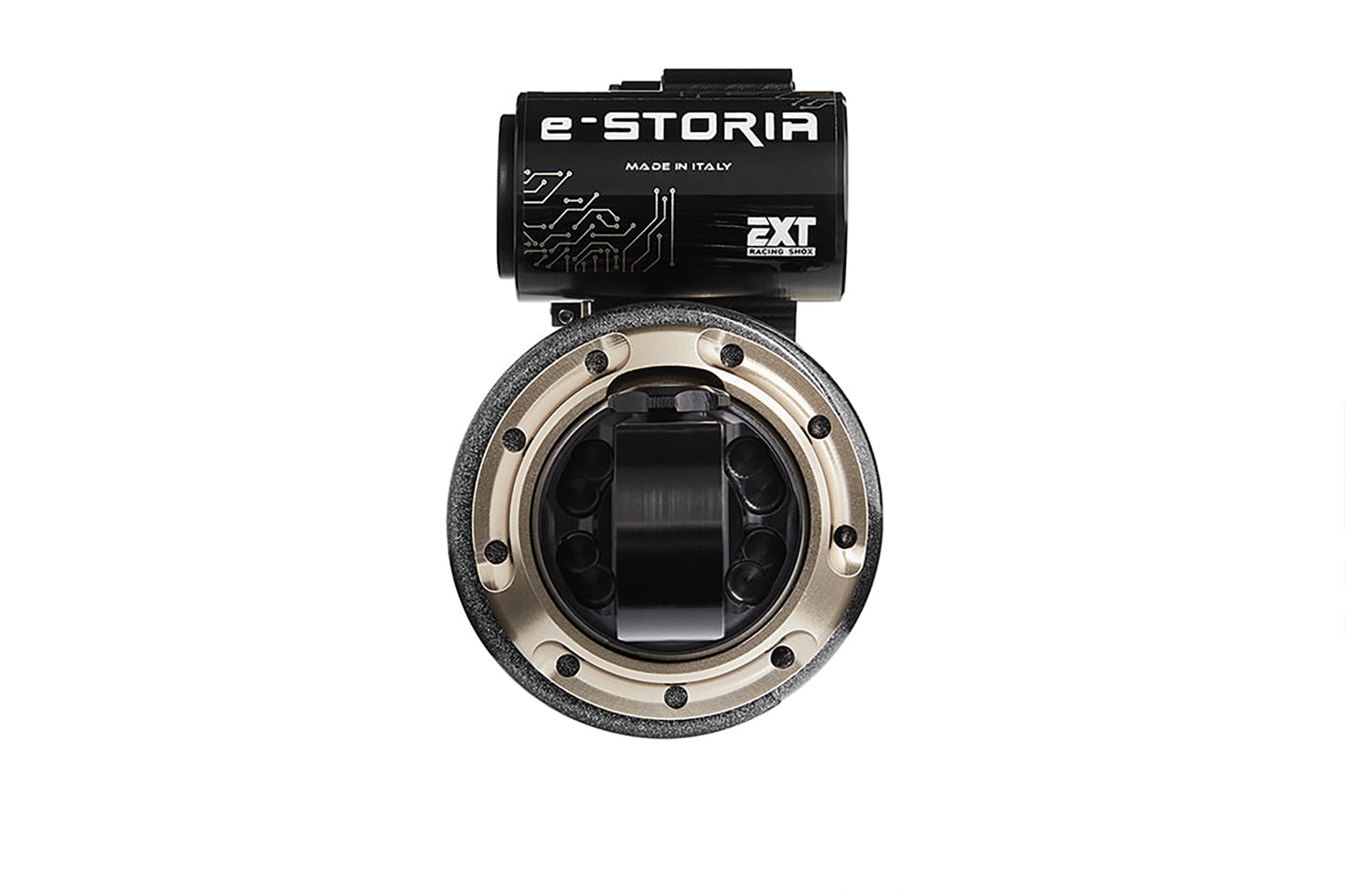

e-STORIA (e-bike dedicated damper)

The e-Storia features much of the same technology of the Storia V3 but in a more robust package built specifically for the stresses involved with the higher vehicle weight of e-bikes and tailored to provide ultimate control for every type of rider, from the enthusiast to those competing at the elite level of e-bike enduro riding.

While the Storia V3 is built for best-in-class weight and performance, the e-Storia is designed with an emphasis on toughness to drastically improve reliability over dampers without dedicated e-bike construction.

The stronger shock design can help increase the lifespan of bike chassis components as well and increase range of tune-ability accommodating a wider range of bikes and riders.

An industry “first” and an ultra-high-performance suspension; it’s specifically designed for aggressive e-bike riding, super comfort level for professional riders and more in general for all the enthusiasts.

The e-Storia includes the following features:

• Integrated reservoir head design to increase eyelet/trunnion mount fitment
• Stronger body construction
• Chromoly shaft with low friction coating
• Reservoir with large volume bladder design
• Dedicated spring platform to accommodate stiffer springs
• Internal negative spring to avoid harsh top-out and improve bike platform stability
• Lok 2.0
• New rebound adjustment to increase tuning range
• New compression valve design to increase adjustability range and provide more supple low speed characteristics.
• Low hysteresis to improve dynamic response
• Completely independent compression/rebound adjustment
• New check valve with low inertia to control damping even at really high frequency
• New externally adjustable HBC and more efficient design to increase bottom out protection
• New seal design to reduce friction
• New main piston design with high flow to improve sensitivity and tunability
• All valves with turbulent flow to assure consistent damping with different temperature and under extreme use/conditions
• A new high viscosity index oil for longer consistent riding in all different situations and seasons
• Springs available up to 800lb
• Comes with 2 EXT light weight V2 springs, available in 25 lb increments

NOTE: Orders Requiring an HD spring (650lb+) will ship with one spring only.

Sizes Available:

METRIC STANDARD

210 / 50 mm
210 / 52.5 mm
210 / 55 mm
230 / 57.5mm
230 / 60 mm
230 / 62.5 mm
230 / 65 mm
250 / 70 mm
250 / 72.5 mm
250 / 75 mm

METRIC TRUNNION

185 / 50 mm
185 / 52.5 mm
185 / 55 mm
205 / 57.5 mm
205 / 60 mm
205 / 62.5 mm
205 / 65 mm
225 / 70 mm
225 / 72.5 mm
225 / 75 mm
