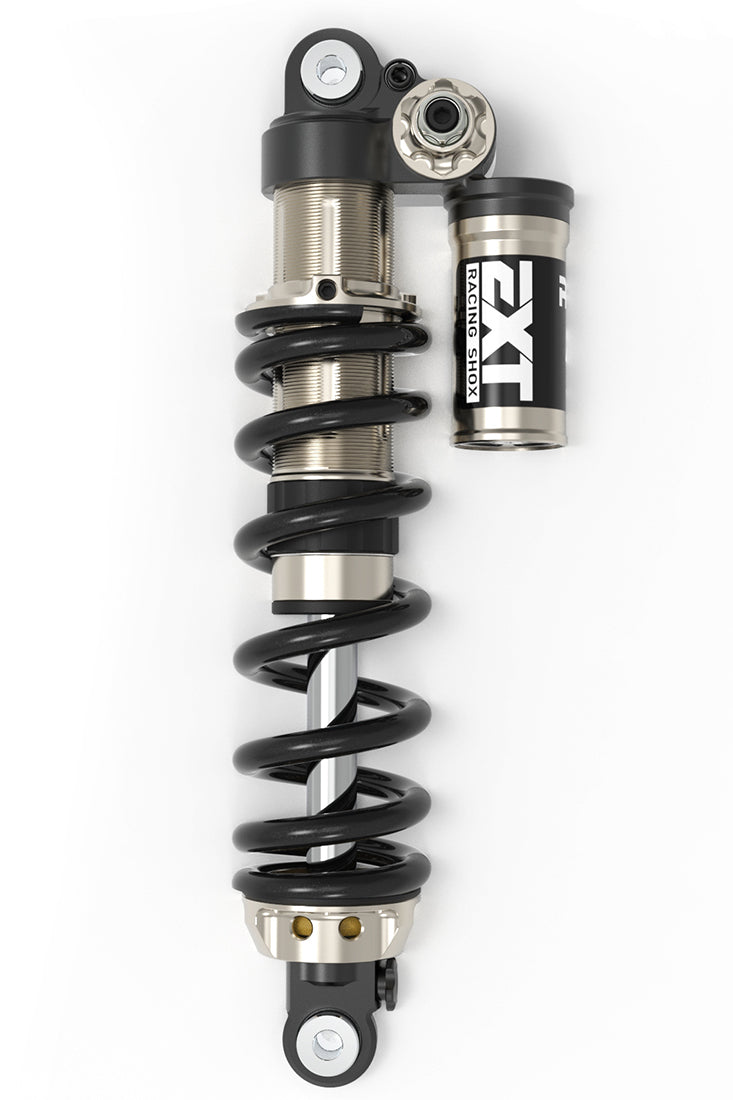

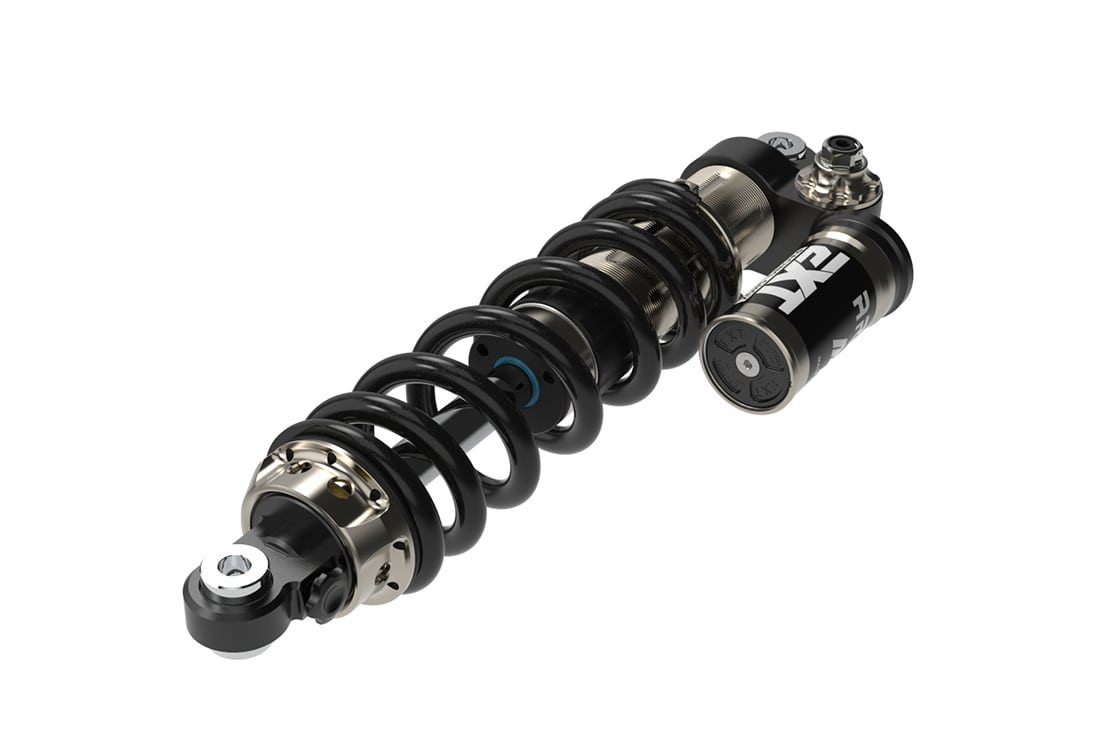

ARMA MX

The Arma MX is built around the already well established Arma V3 MTB damper from which it inherited its name and all the properties that made its elder mountain bike dedicated brother famous. With the Arma MX, a lot of effort has been placed in developing a dedicated unique platform that offers some new implementations in terms of mechanical strength. The Arma MX offers safer riding and unparalleled performance on the Sur Ron and Talaria e-bikes.

The Arma MX is a direct bolt-on replacement for the SurRon LBX, Talaria Sting, E-Ride Pro SS, RFN Apllo and the RAWRR Mantis. No additional hardware is needed, simply bolt-on and go.

Engineered with performance and control as primary objectives, the shock structure has seen a redesign in order to be more robust. The Hydraulic Bottom-Out Circuit (HBC) has been enhanced with a wider range of adjustment, in order to prevent bottom-out issues, while allowing riders to use softer spring rates and providing excellent support and end stoke characteristics.

The Arma MX includes the following features

• 4 way adjustable: LSC-HSC-LSR-HBC (Hydraulic Bottom-Out Control)
• High flow 29 mm main piston
• 24 mm valve piston
• 14 mm shaft (50% larger than most other coils on market to help deal with large side loading events)
• Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating
• User adjustable HBC technology
• Very low reservoir pressure for maximum sensitivity  and low cavitation(55 PSI)
• Full custom hydraulic setup that is bike and rider specific for each shock
• Very low hysteresis for high dynamic response
• High turbulent flow for progressive dampening and mid stroke support
• Low friction seal
• Thinner bottom-out bumper and debris clearing washer

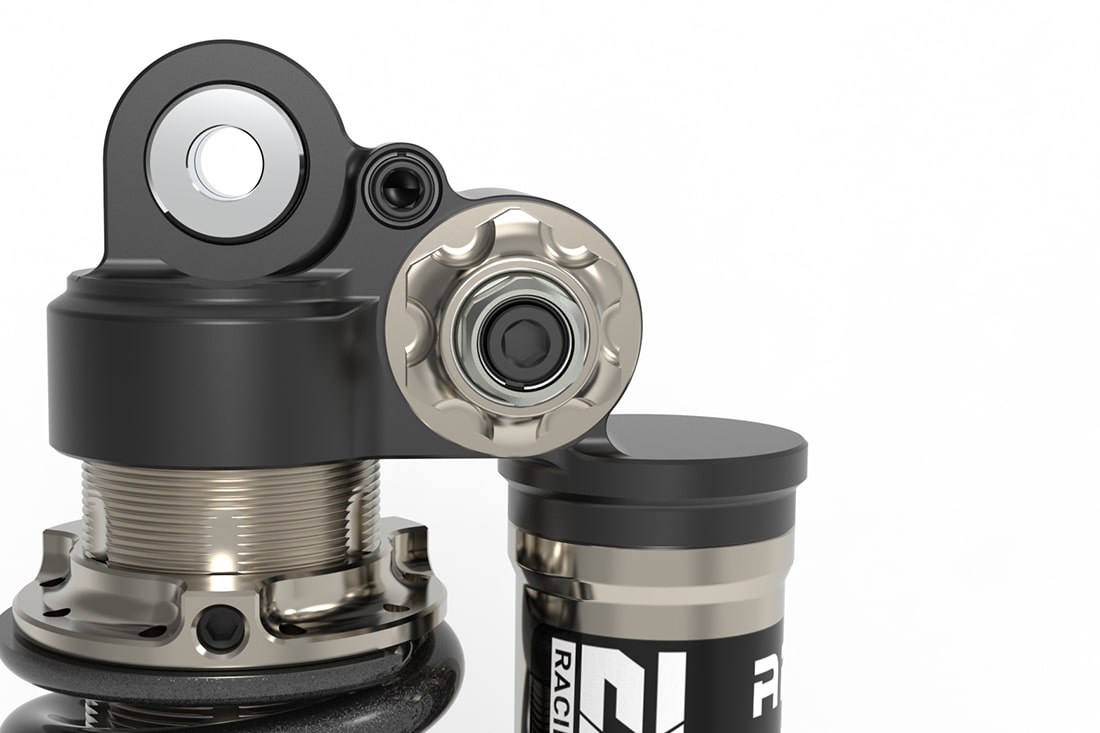

• New low profile rebound knob for easy spring swap
• Included with 1 light weight spring available in 400lb, 450lb, 500lb, 550lb or 600lbs (Lower options may be available upon request)
• Comes with Sur Ron specific mounting hardware for easy bolt in instillation.

 Arma MX is specifically designed to be used on electric dirt bikes (EMX) and is available in 267×87 mm length. This is a direct bolt-on replacement for your stock rear shock.
